HYGRASGARD® VFTF-Modbus LCD

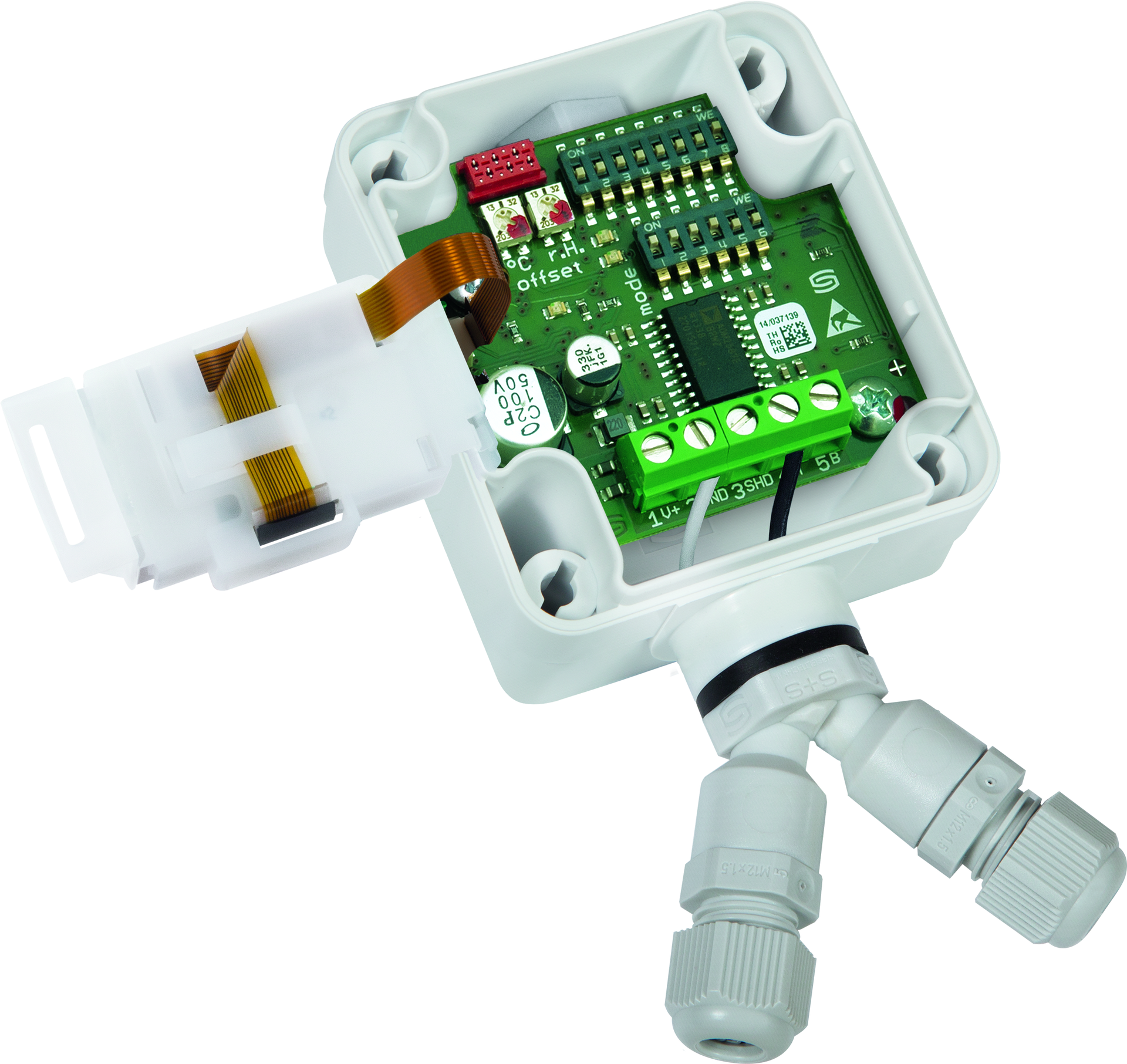

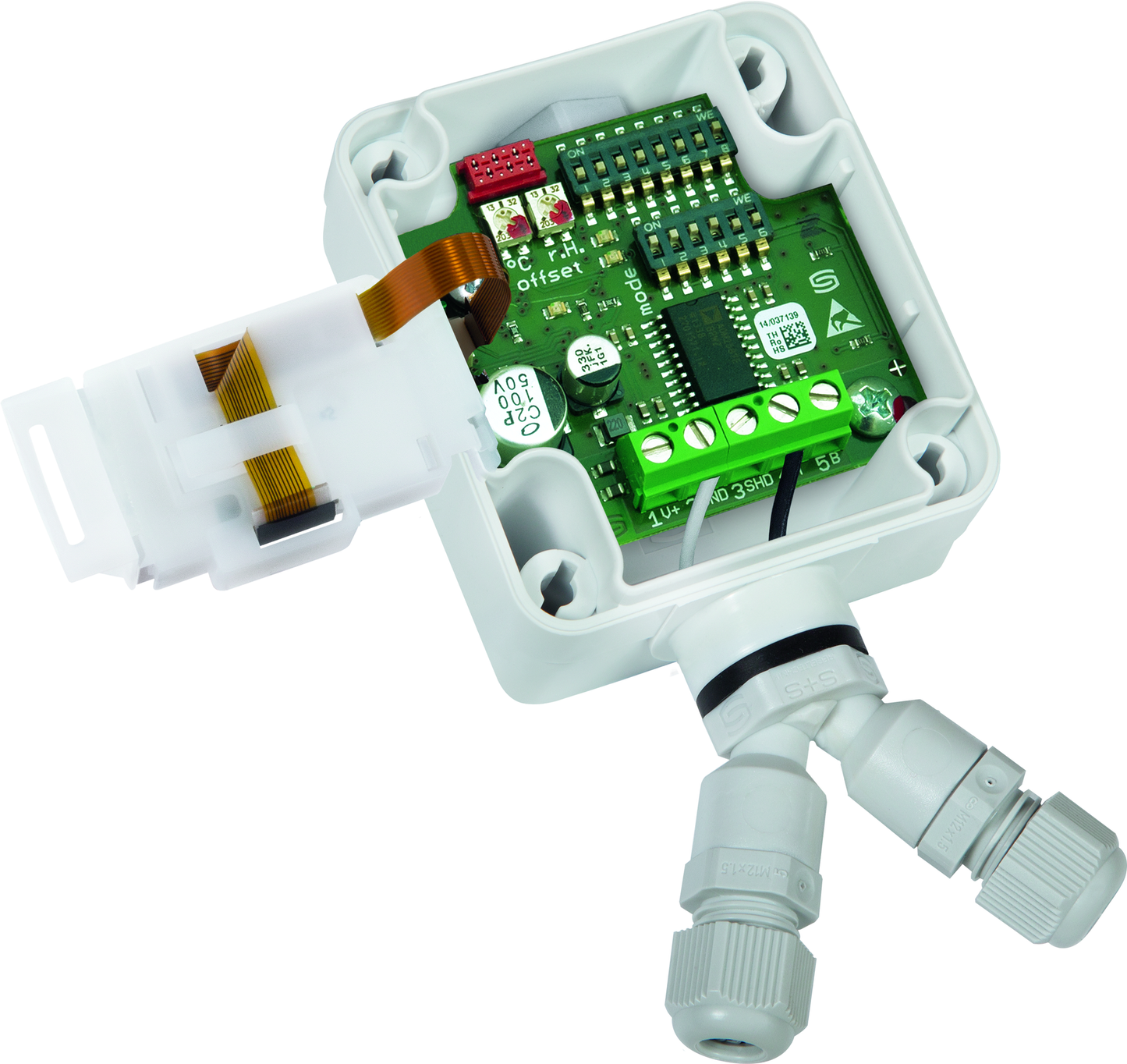

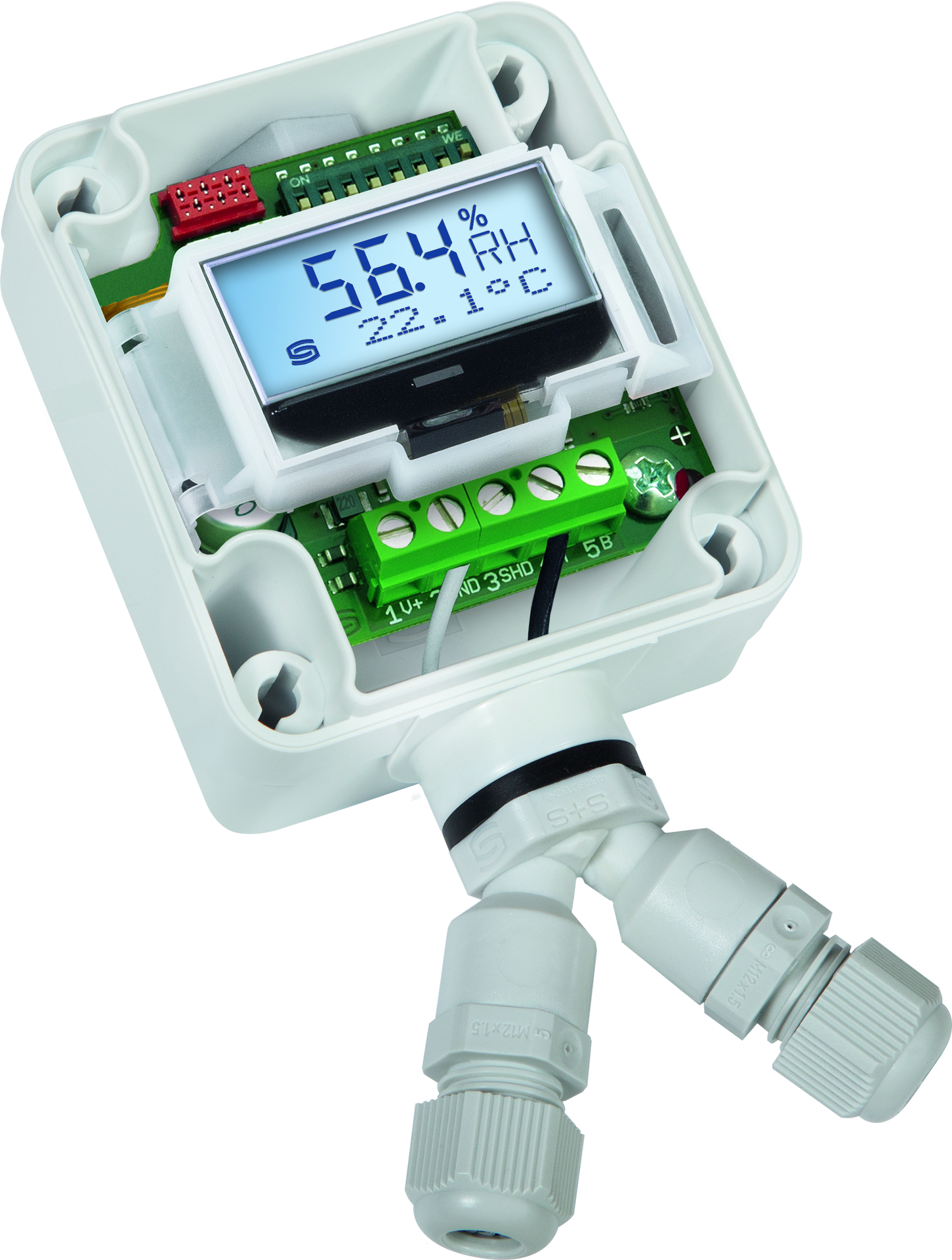

Calibratable display case humidity and temperature sensor HYGRASGARD® VFTF - Modbus with Modbus connection, terminal box housing made of impact-resistant plastic, housing cover with quick-locking screws, optionally with/without display.

The universal display case sensor is used to determine various humidity measurement technology parameters.
The relative humidity and temperature of the ambient air are measured.
Various parameters are calculated internally from these measured variables. The following parameters can be queried via the Modbus: relative humidity [% RH], absolute
humidity [g/m³], mixing ratio [g/kg], dew point temperature [°C], enthalpy [kJ/kg]
(neglecting the atmospheric air pressure) and ambient temperature [°C].

The transmitter is designed for the exact measurement of temperature and humidity.
A digital, long-term stable sensor is used as the measuring element for humidity and temperature. Fine adjustment by the user is possible.

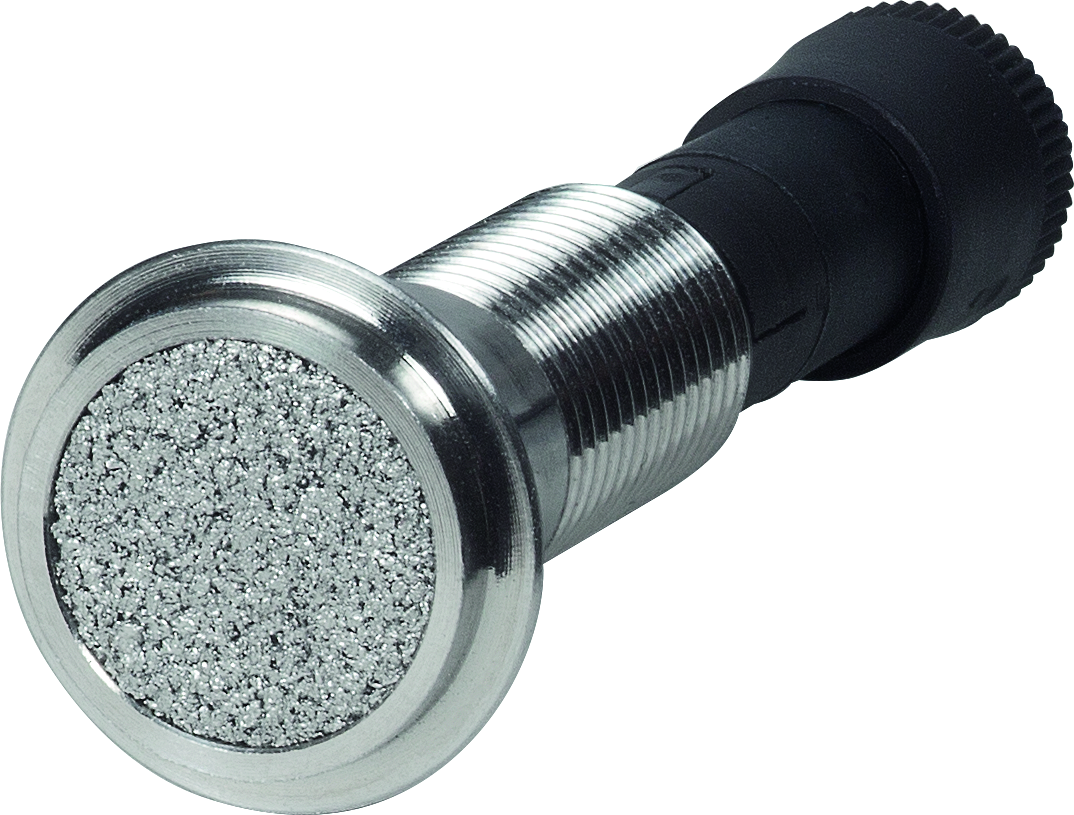

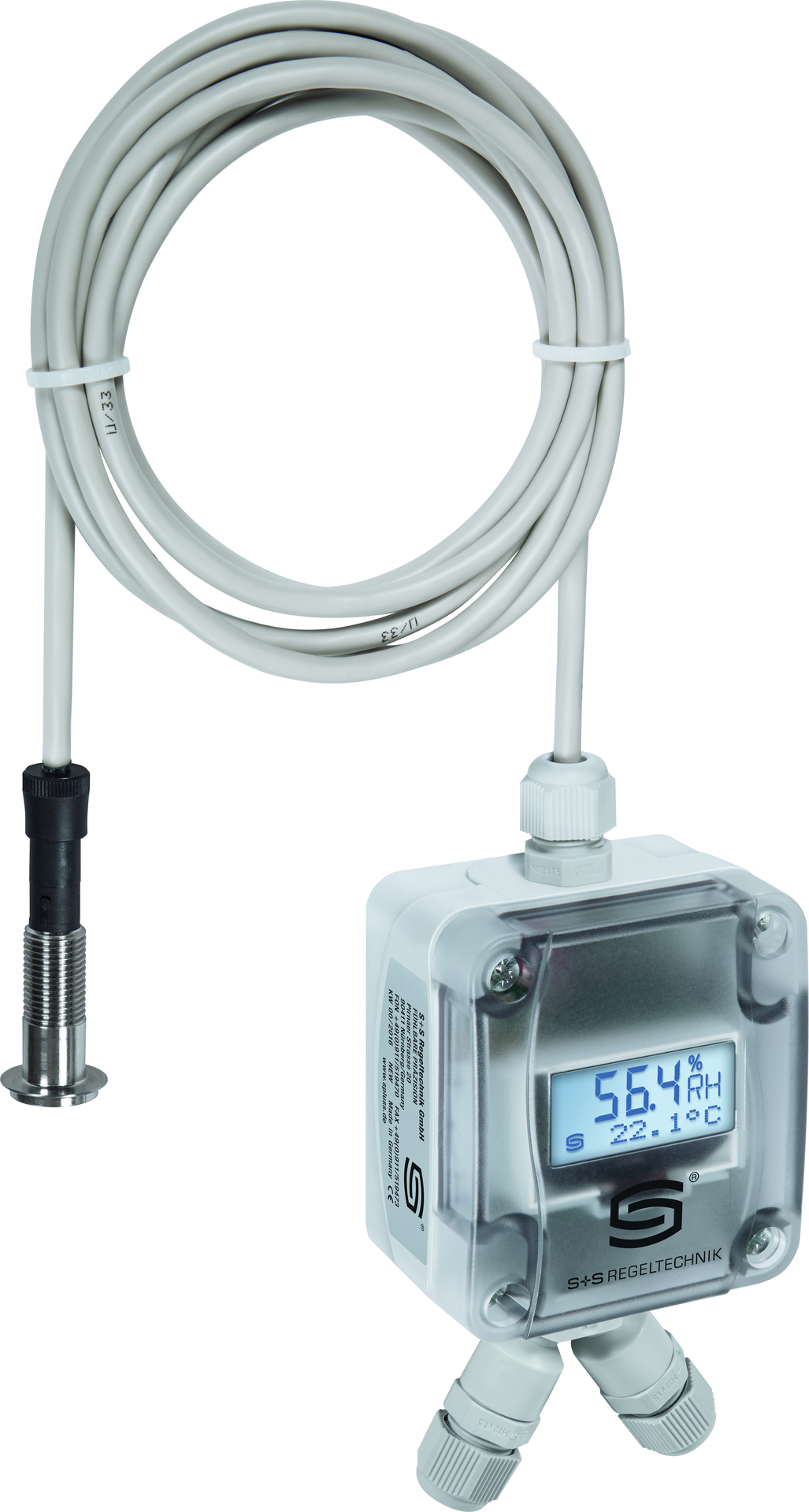

The display case sensor is used in non-aggressive, dust-free environments and is especially suitable for installation in ceilings, walls, display cases or showcases in museums, galleries, cinemas, auditoriums or laboratories. The measuring element is located in a stainless steel probe and is hardly noticeable due to its very low height (approx. 2.5 mm).
