Product description
- ±7000 Pa
- Accuracy: ± 105 Pa
- Differential pressure [Pa],
Volume flow [m3/h] - Modbus RTU
- IP65

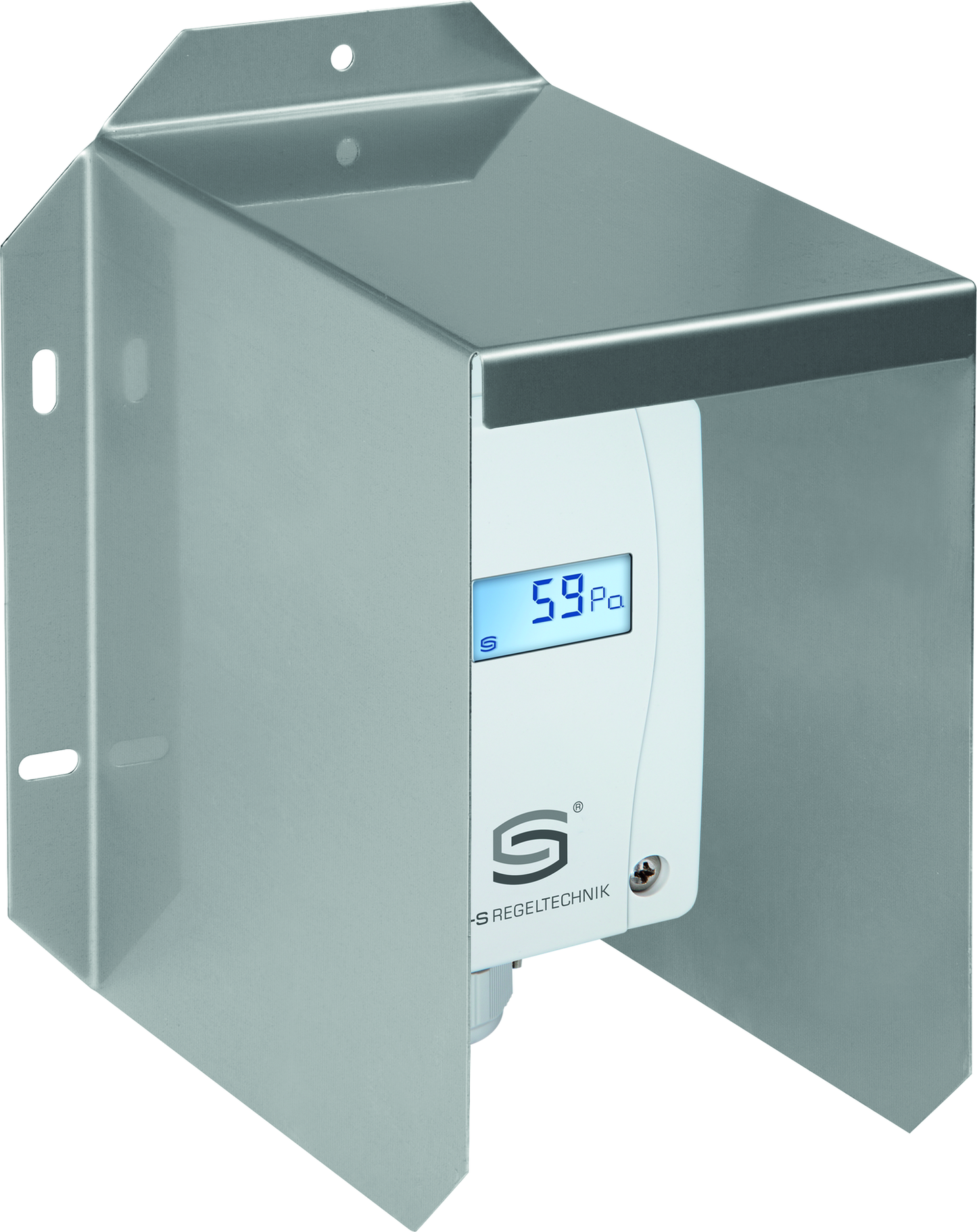

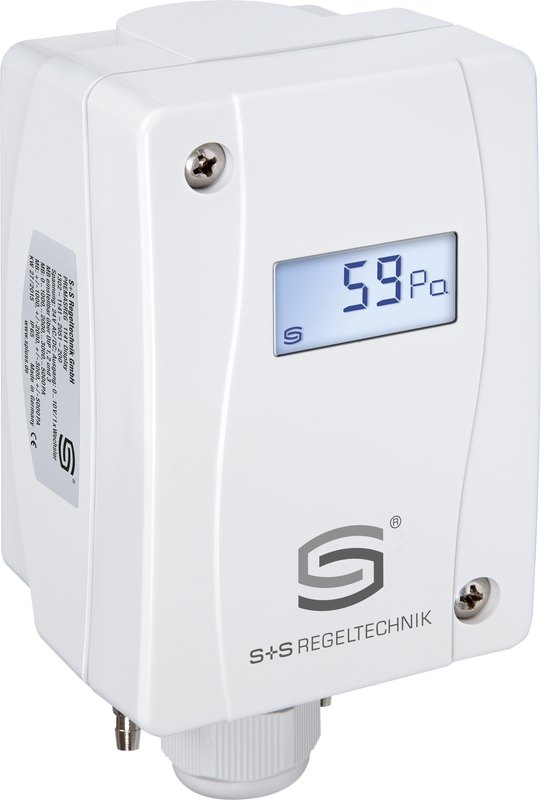

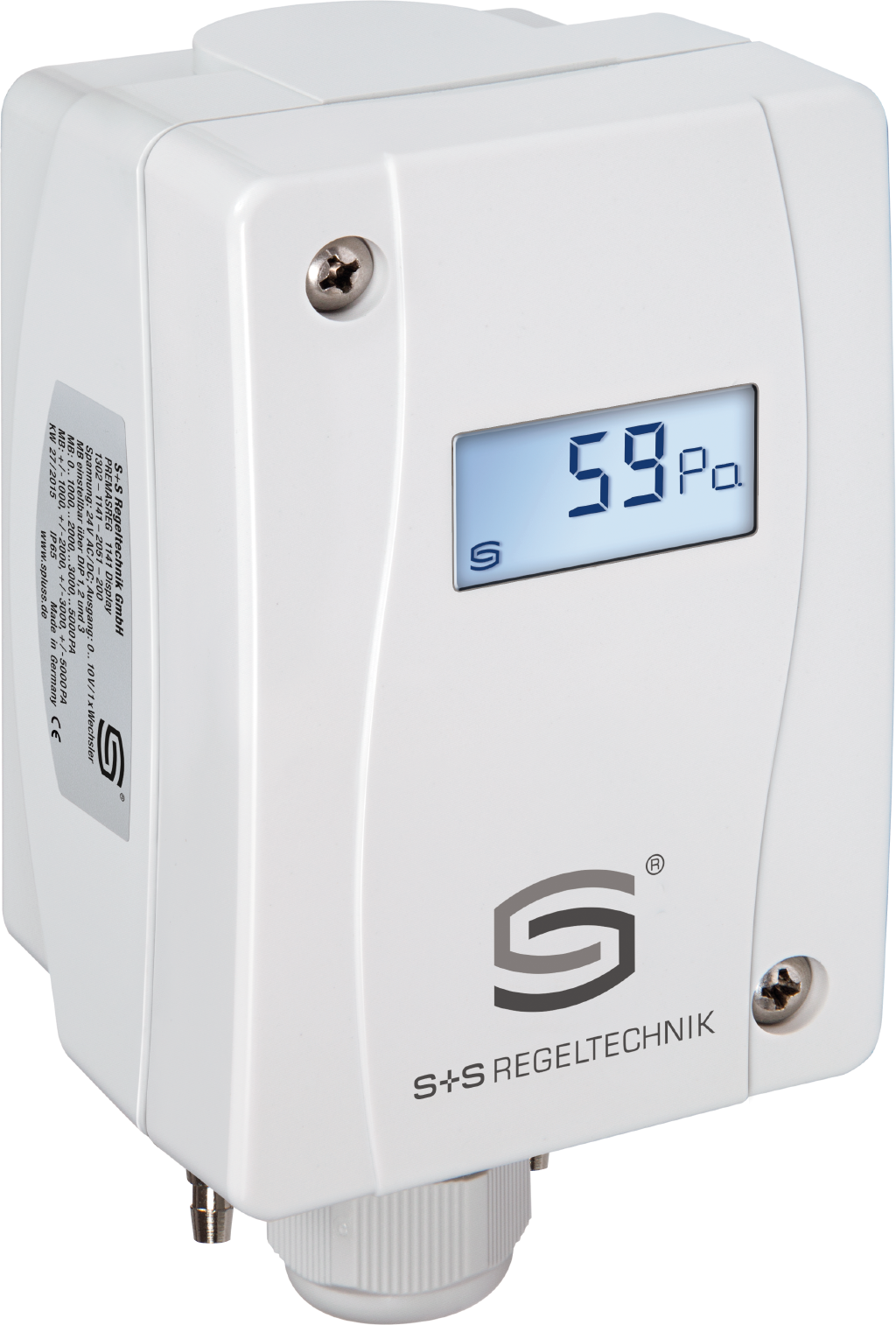

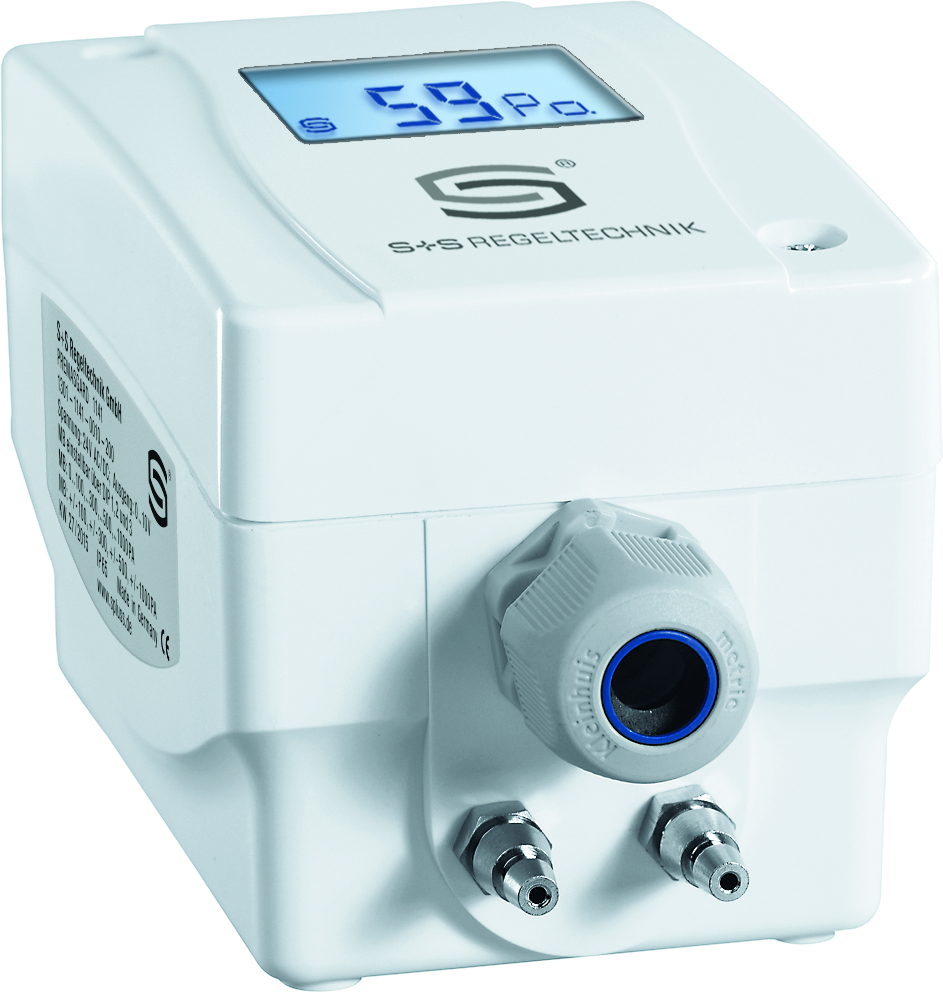

Maintenance-free microprocessor-controlled PREMASGARD® 11D7 - Modbus with Modbus connection, in impact-resistant
plastic housing, for measuring the differential pressure (max. -7000...7000 Pa) in air. Incl. connection set ASD-06 (2 m connection hose,
two pressure connection nipples, screws).
The pressure sensor is used to measure positive, negative or differential pressures in clean air and gaseous media. The insert
in clean room, medical and filter technology, in ventilation and air conditioning ducts, in spray booths, in commercial kitchens, for filter monitoring and
level measurement or for controlling frequency converters.
Innovative Modbus sensor with galvanically isolated RS485 Modbus interface, switchable bus terminating resistor, DIP switch for
setting the bus parameters and bus address in the de-energized state, LEDs for telegram status display and a push-in terminal. The sensor is
calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
