THERMASGARD® RPTM1-wModbus

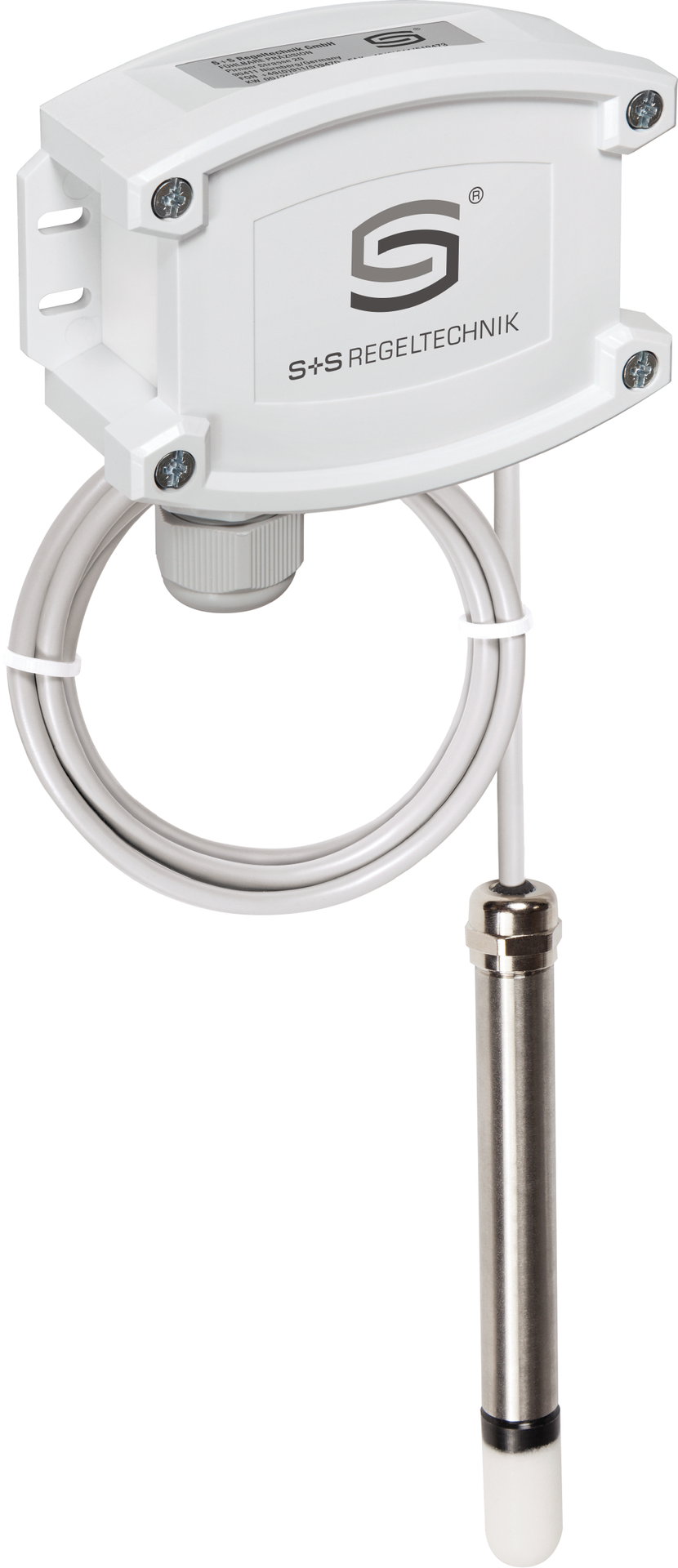

Calibratable room pendulum temperature transmitter (with sleeve) THERMASGARD® RPTM1 - Modbus - T3, with Modbus connection, in impact-resistant plastic housing with quick-locking screws, cable sensor with stainless steel sleeve and plastic sintered filter (replaceable), optionally with ⁄ without display, measures temperature (-50...+150 °C). International unit system SI (default) is set to Imperial (via Modbus).

The pendulum sensor is specially designed for recording the temperature in larger rooms or halls. The resistance thermometer (globe thermometer) achieves a very good, representative measurement result due to its positioning in the room.
Calibratable room pendulum temperature transducer (with globe) THERMASGARD® RPTM 2 - Modbus - T3, with Modbus connection, in impact-resistant plastic housing with quick-locking screws, cable sensor with black plastic ball, optionally with ⁄ without display, measures temperature (-50...+150 °C). International unit system SI (default) is set to Imperial (via Modbus).

Innovative Modbus sensor with galvanically isolated RS485 Modbus interface, switchable bus terminating resistor, DIP switch for setting the bus parameters and bus address in de-energized state, internal LEDs for telegram status display, two separate push-in terminals and large three-line display (illuminated, individually programmable in the 7-segment range and dot matrix range). By means of self-diagnostics sensor break or sensor short circuit are recognized as errors. The error messages can be called up via the Modbus and are shown on the display. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
