THERMASGARD® TM65-Modbus-SD 150mm

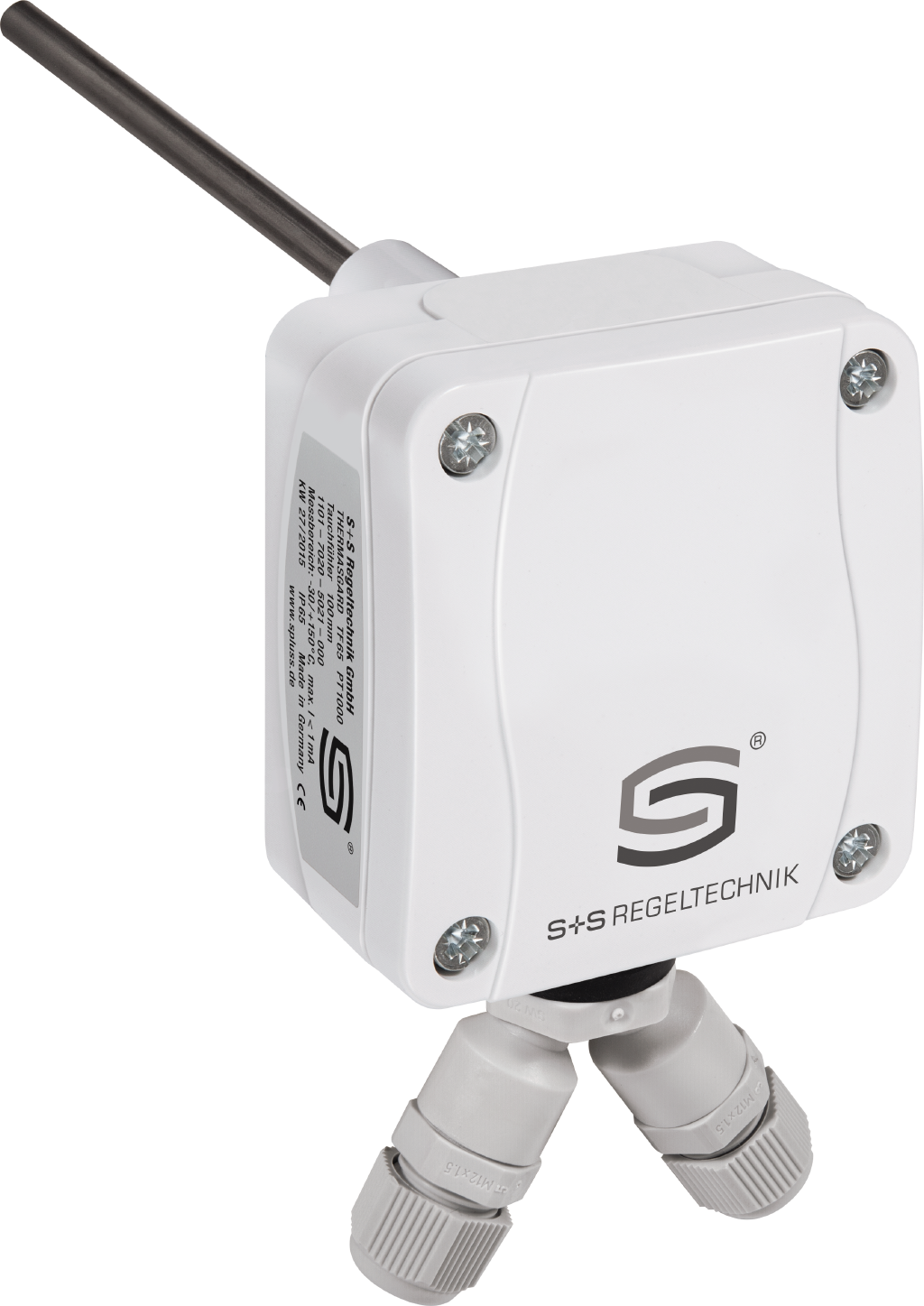

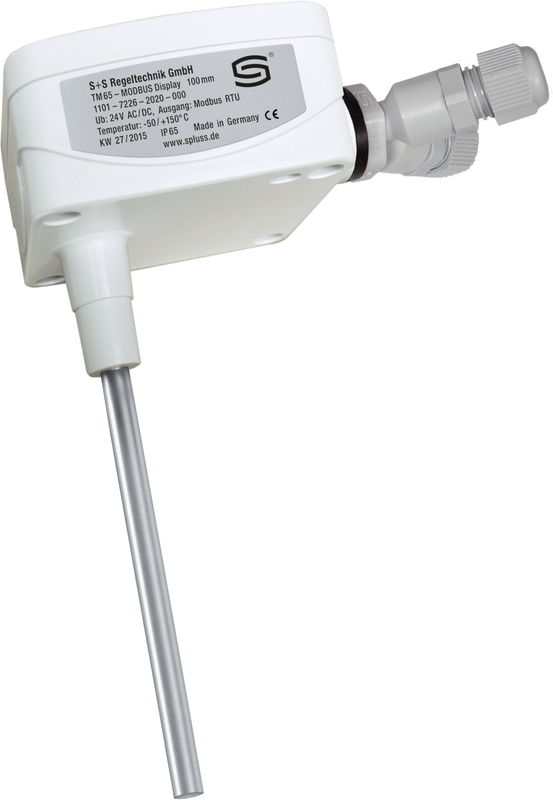

Patented quality product (immersion sensor patent no. DE 10 2012 017 500.0) Calibratable temperature transmitter with sensor tube THERMASGARD® TM 65 - Modbus-SD, with Modbus connection (Y-adapter), in impact-resistant plastic housing with quick-locking screws, stainless steel protection tube (100 - 200 mm), optionally with ⁄ without display, measures temperature (-50...+150 °C).


The duct sensor is used to measure the temperature in liquid or gaseous media. The stainless steel immersion sleeves must be used for aggressive media. It is used in heating technology, ventilation and air conditioning ducts, in pipelines, in storage tanks, district heating compact stations, hot and cold water systems, oil and lubrication circulation systems, in mechanical and plant engineering and in the entire industrial sector. Modbus sensor SD with RS485 Modbus interface (not galvanically isolated), switchable bus terminating resistor, DIP switch for setting in de-energized state, internal LEDs for telegram status display (illuminated, individually programmable). Sensor breakage or sensor short circuit are detected as faults by means of self-diagnostics. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
