Room temperature controller,Climate controller

THERMASREG® RTR-S 014

Name: THERMASREG® RTR-S 014
Brand: THERMASREG
SKU: 1102-40B0-1400-000
Price: 228.72 USD
Availability: InStock

SKU 1102-40B0-1400-000 EAN 4251325609843 Product group: WG01

Not available

$228.72

Quantity

View full details

Product description

Regelbereich:
+5...+30 °C, einstellbar über Sollwertpoti mit Zahlenskala oder
+21 °C (± 8 K), einstellbar über Sollwertpoti mit Schwellpfeil
(Mittelstellung/ +/ – )
Proportional-Band:
intern über Poti einstellbar,
Heizen +0,5...+3 K (1 K Werkseinstellung)
Kühlen +0,5...+3 K (2 K Werkseinstellung)
neutrale Zone:
intern über Poti einstellbar,
+1...+5 K (1 K Werkseinstellung)
Regelverhalten: PI
Ausgänge:
1 x Heizen, 1 x Kühlen,
0 - 10 V oder 10 - 0 V umsteckbar, max. 5 mA
Potentiometer, LED-Anzeigen, Drehschalter
Temperaturfühler:
intern oder extern (über Jumper wählbar)
Pt 1000 nach DIN EN 60751, Klasse B
24 V AC/ DC (± 10 %)
Bedruckung: +5..+30°C
IP30

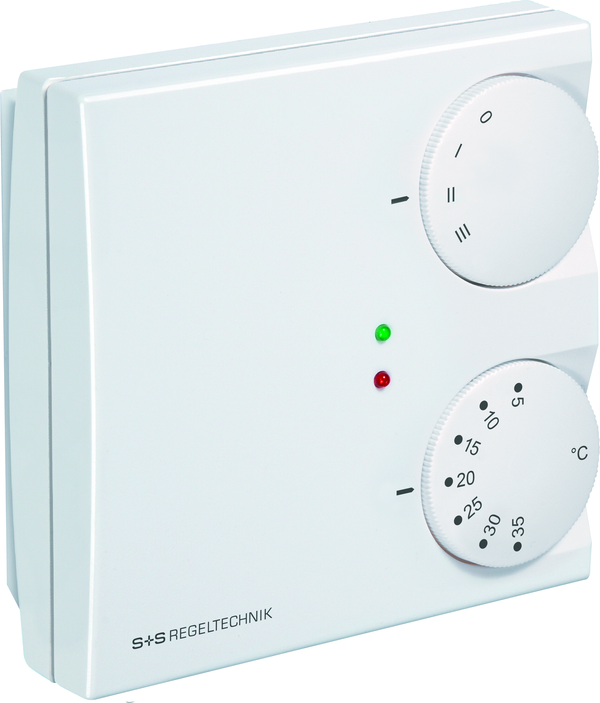

Electronic room thermostat/air conditioning controller THERMASREG® RTR - S for temperature control or monitoring, with 0-10 V output for heating and cooling, optionally as a continuous climate controller with manual fan speed control, setpoint adjustment and LED operating displays.

Used in dry individual rooms that are heated or cooled with radiators, cooling ceilings, ventilation or air conditioning systems, or as a remote control for air conditioning units, e.g. in hotels, offices or hospitals, or as a room thermostat.
