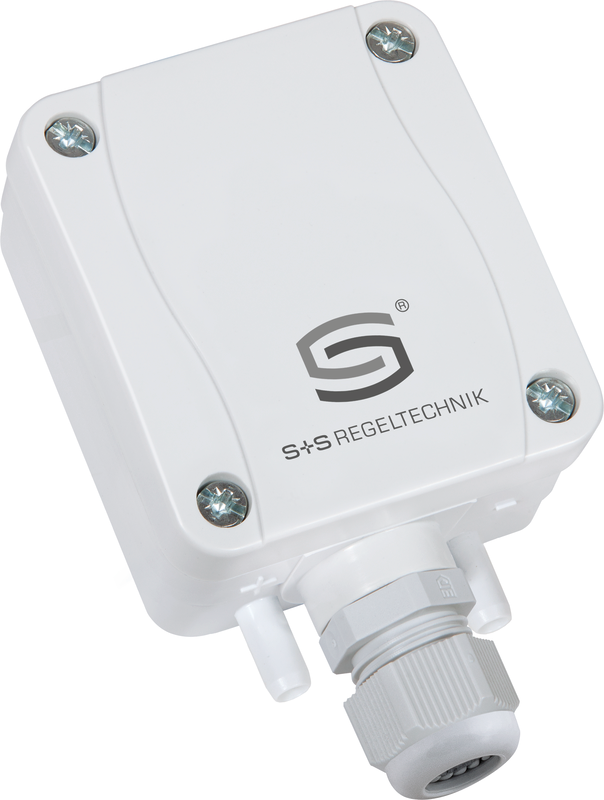

PREMASGARD 2125

The calibratable, compact pressure sensors in the PREMASGARD® 212x are equipped with 8 switchable measuring ranges, 2 switchable output signals (16 devices in one) and an optional display and are used to measure positive, negative or differential pressures and air volume flows. The piezoresistive measuring element is temperature-compensated and guarantees high reliability and accuracy. The pressure transmitters have a button for manual zero point adjustment and an adjustable offset.


The pressure sensors are used in clean room, medical and filter technology, in ventilation and air conditioning ducts, in spray booths and commercial kitchens, for filter monitoring and level measurement or for controlling frequency converters. The measuring media of the pressure transmitters are clean air (non-condensing) or gaseous, non-aggressive, non-flammable media. The differential pressure sensors are supplied incl. connection set ASD-06 (2 m connection hose, two pressure connection nipples, screws).
