Product description
- - 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
- 0 - 10 V
- Cable gland
- Stainless steel, V4A
- IP65

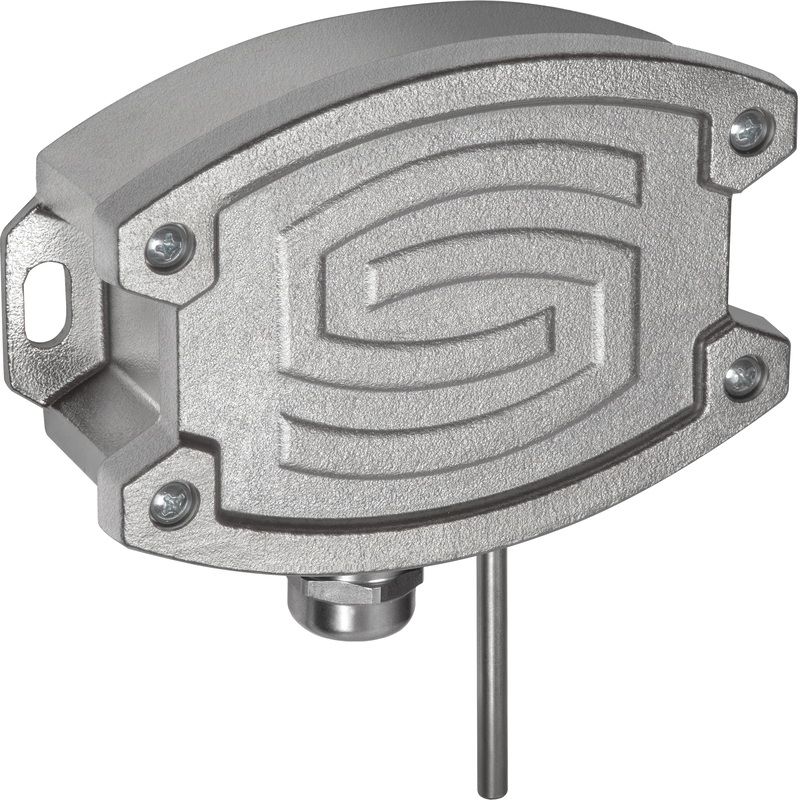

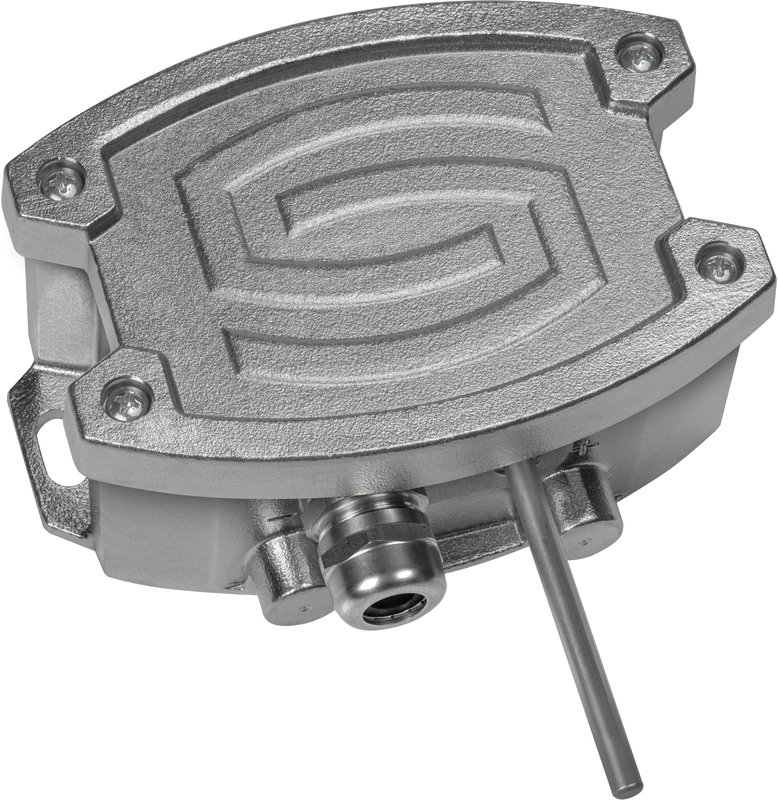

Calibratable outdoor temperature transmitter THERMASGARD® ATM 2 - VA with eight switchable measuring ranges, external sensor, continuous output, robust housing made of stainless steel V4Awith cable gland or M12 plug connector according to DIN EN 61076-2-101.
It is used to record the outdoor temperature, the temperature in damp areas and is suitable for mounting on external walls, in cold stores and greenhouses, in industrial areas and in agriculture, for example. In outdoor areas, the temperature transmitter is preferably installed on the north side or in a protected location. In direct sunlight, the sun and ball impact protection WS 01 or WS 03 (accessories) must be used.
The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
