Immersion ⁄ screw-in ⁄ duct temperature transmitter

THERMASGARD® TM54-U 400mm KV

Name: THERMASGARD® TM54-U 400mm KV
Brand: THERMASGARD
SKU: 1101-7171-0089-910
Price: 227.0 USD
Availability: InStock

SKU 1101-7171-0089-910 EAN 4251325624983 Product group: WG01

In stock , available in 1-3 working days

$227.00

Quantity

View full details

Product description

- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
Installation length: 400mm
0 - 10 V
Cable gland
IP65

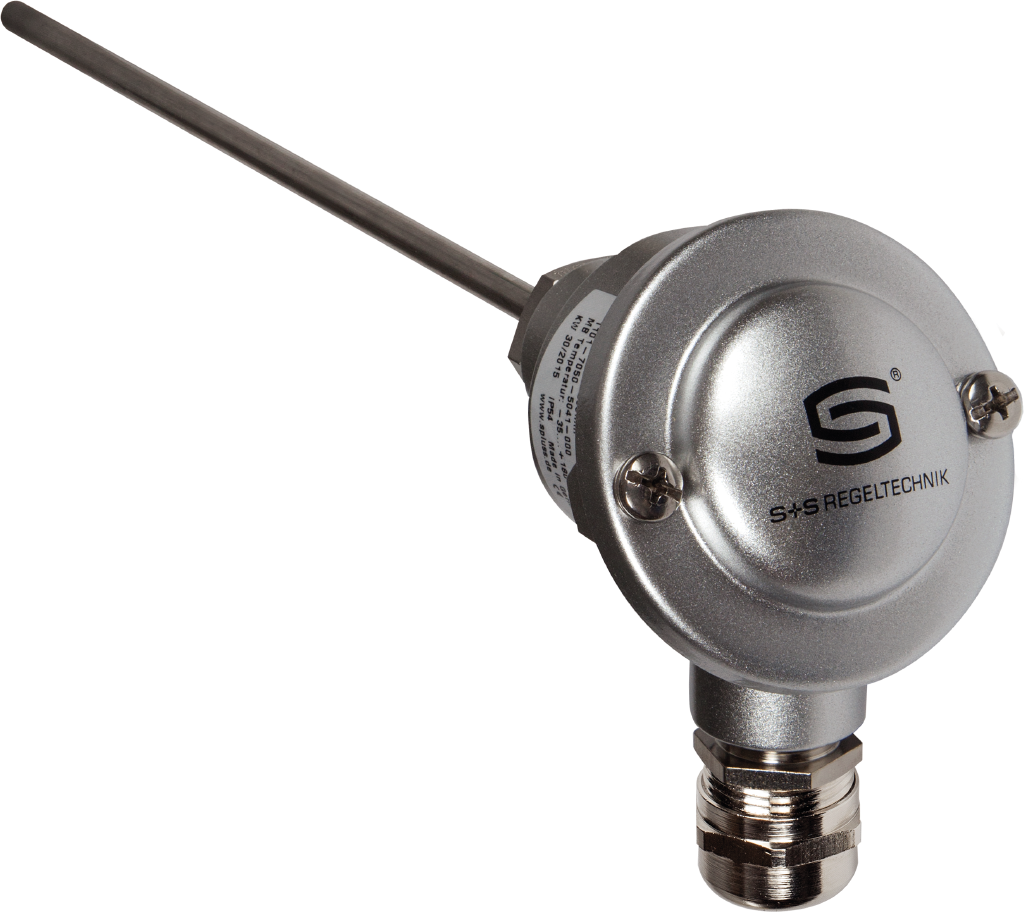

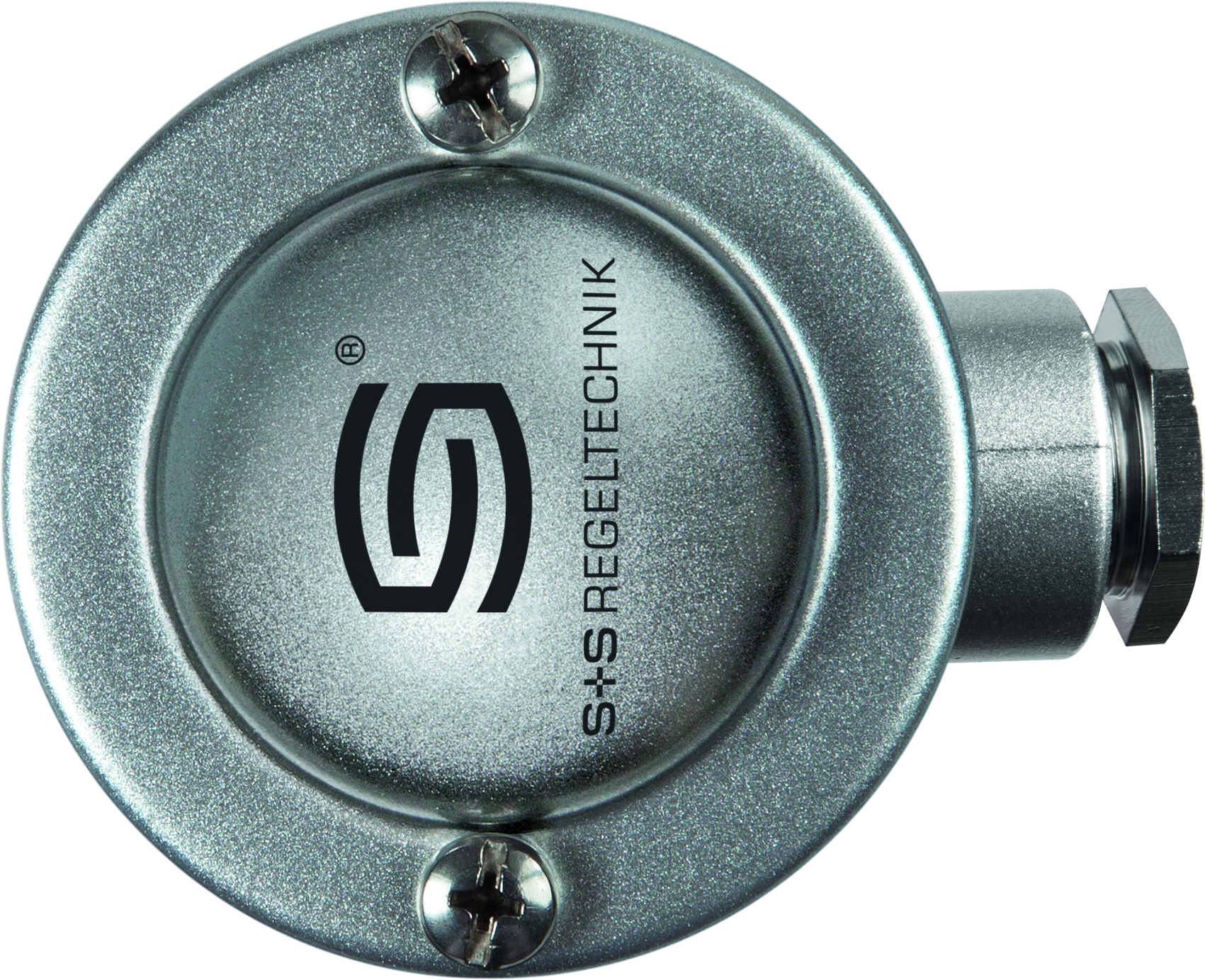

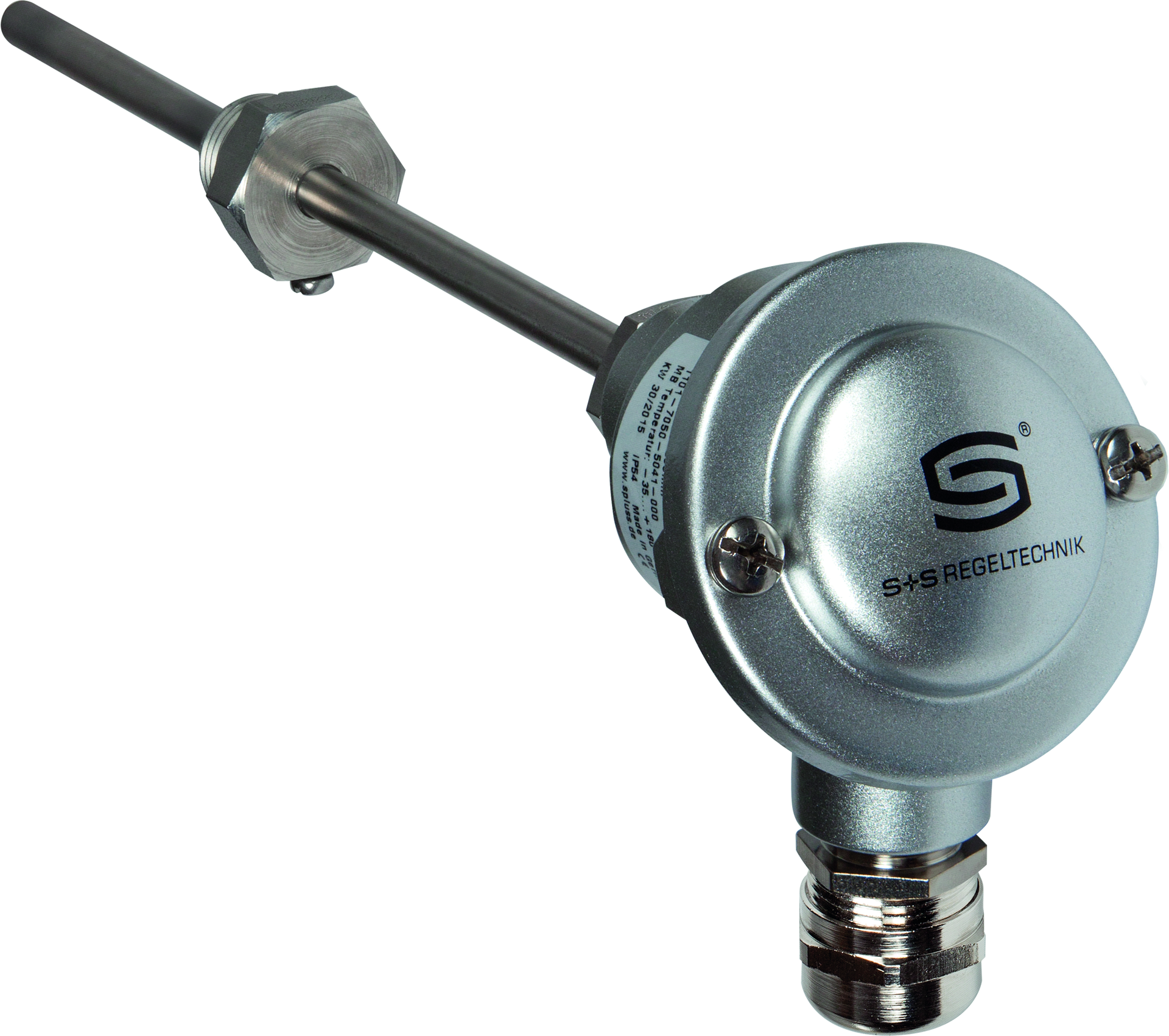

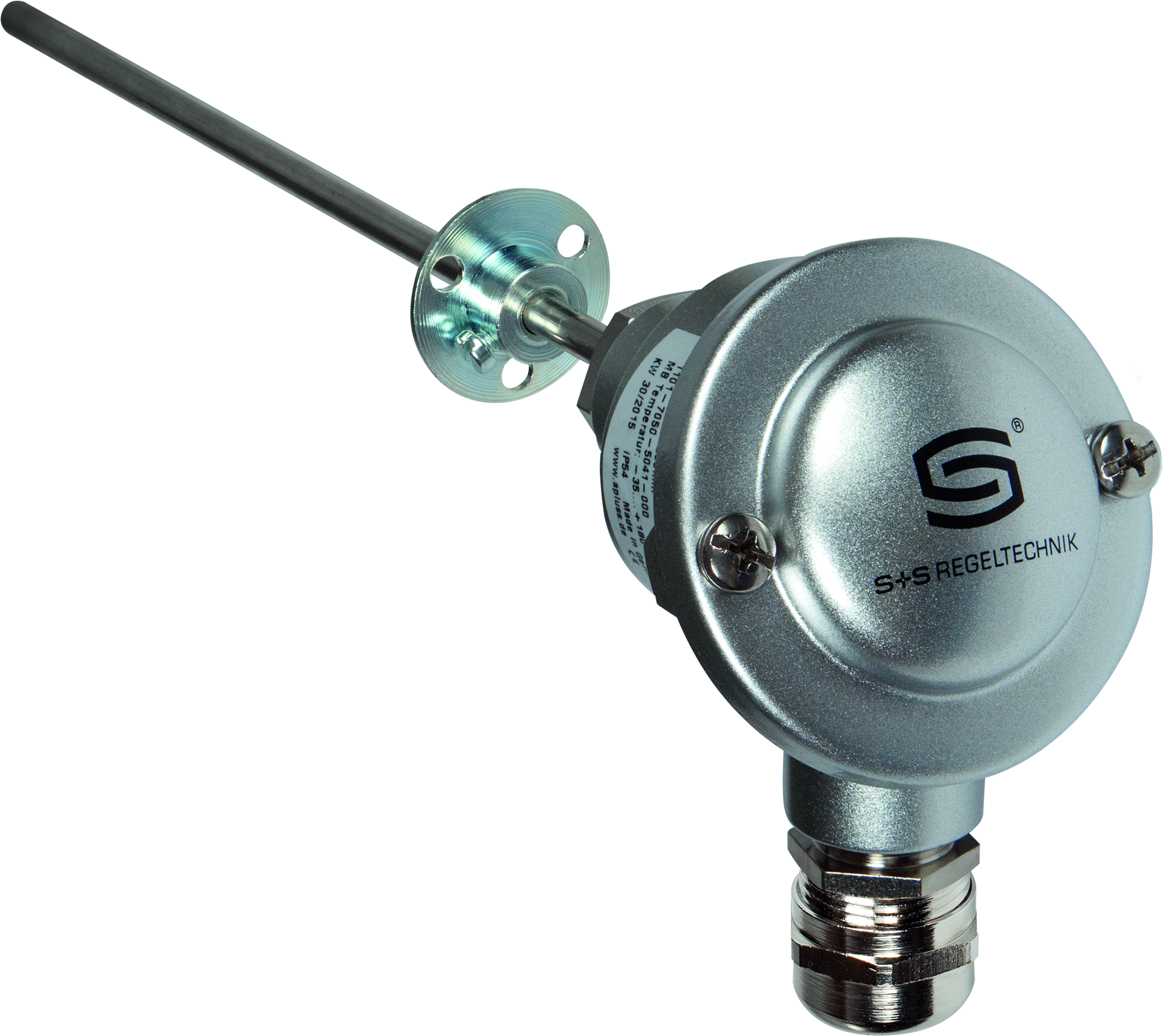

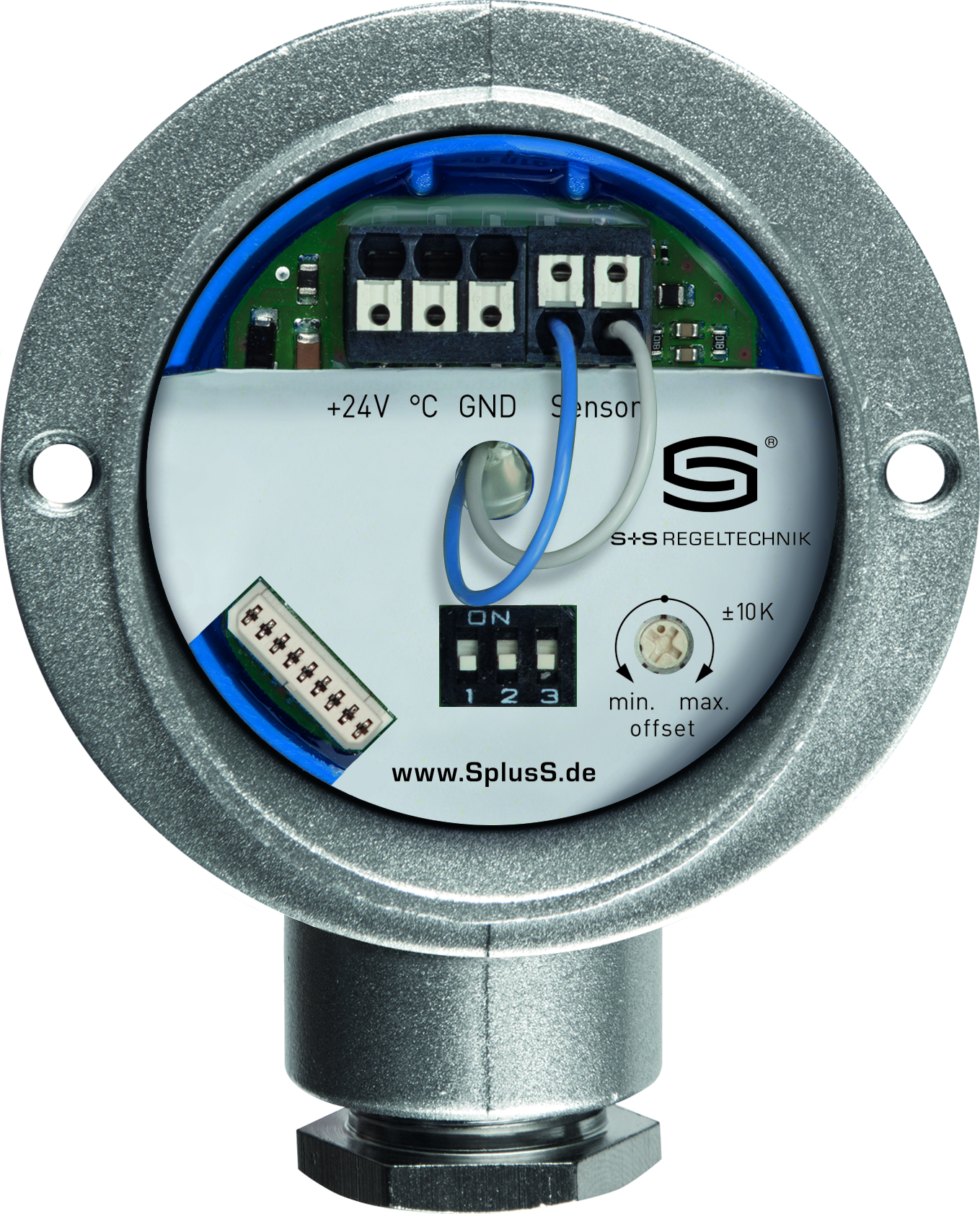

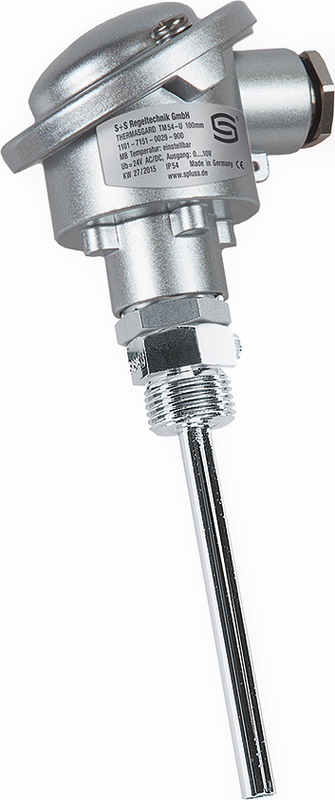

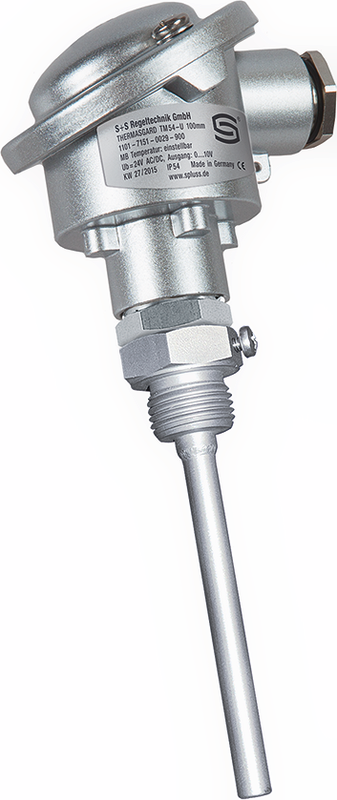

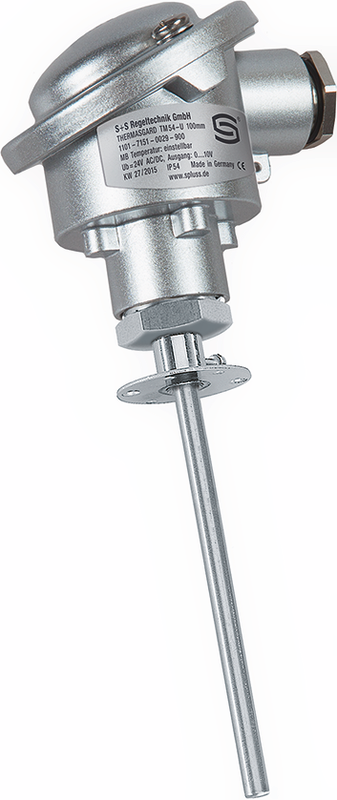

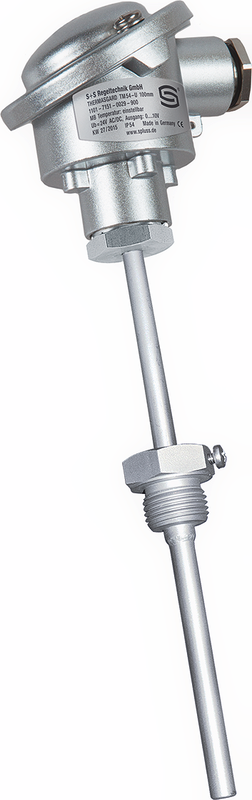

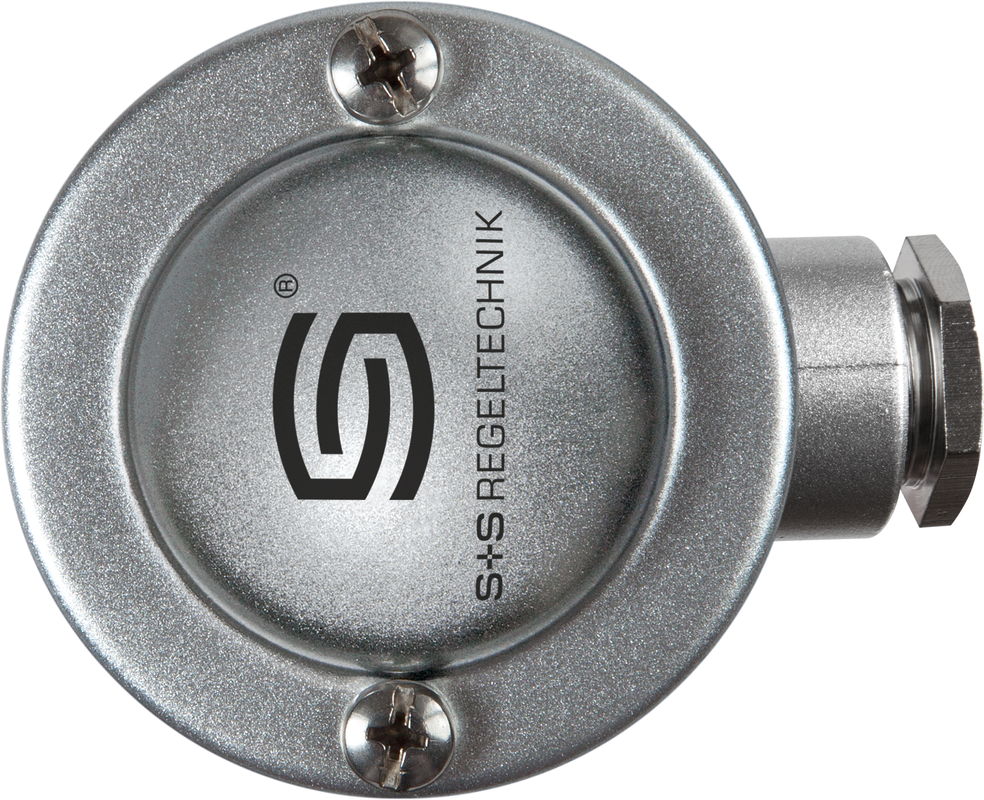

Calibratable temperature transmitter THERMASGARD® TM 54 with eight switchable measuring ranges and continuous output, optionally with cable gland or M12 plug connector to DIN EN 61076-2-101, with aluminum connection head and straight protective tube. One basic device in three variants by combining with accessories, e.g. for robust applications with separate stainless steel immersion sleeve.

The duct sensor is used to measure temperatures in liquid or gaseous media. It is used in pipelines, in heating technology, in storage tanks, district heating stations, hot and cold water systems, oil/lubrication circulation systems, in machine, apparatus and plant construction as well as in the entire industrial sector.

The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
