Product description
- mechanical
- for liquid and gaseous, EVEN aggressive media
- Screw-in body stainless steel (V4A), R1"

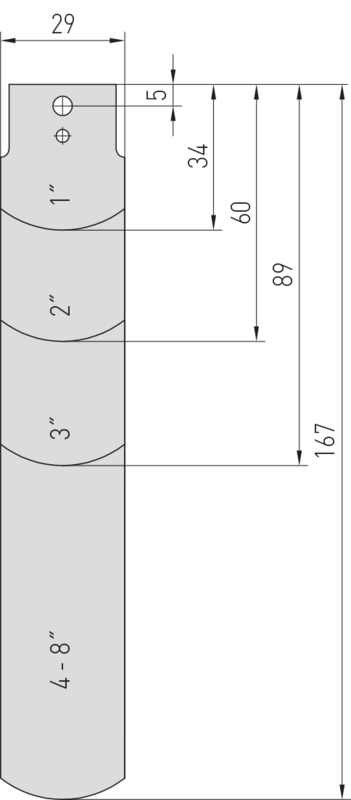

- for pipe Ø DN 1" ...8"
- Switching output (changeover contact)
- Working pressure max. 30 bar
- Medium temperature max. +120 °C
- IP 65

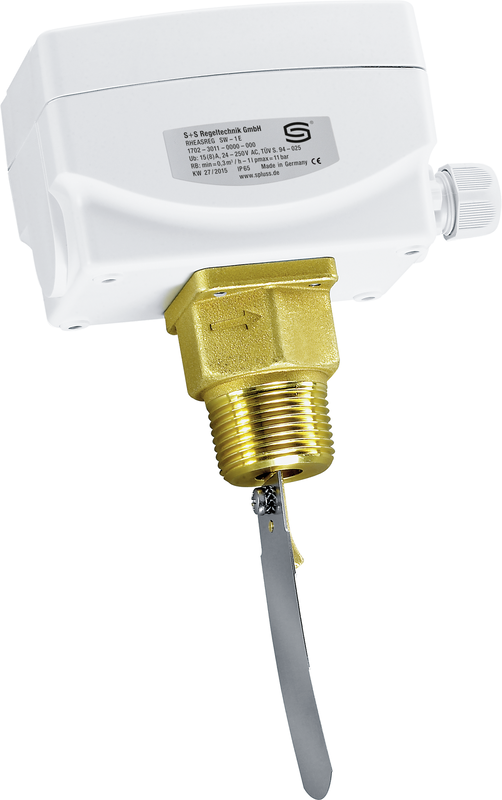

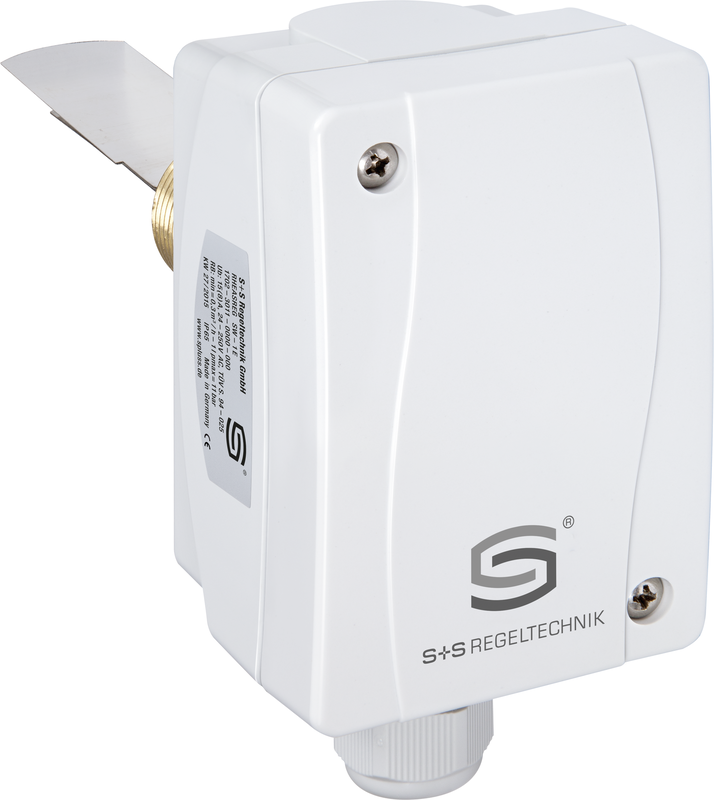

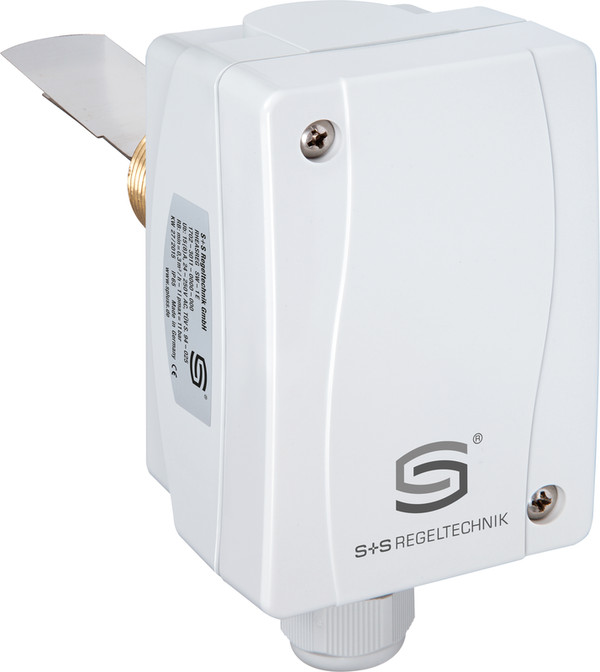

Mechanical paddle flow monitor RHEASREG® SW with switching output, in impact-resistant plastic housing, with stainless steel paddle, for flow monitoring of liquid and gaseous, non-aggressive media in pipelines, hydraulic systems from ¾'' to ½'' to 8'' diameter.
The flow sensor is used as a flow monitor or low water cut-out, e.g. for pumps in oil and cooling circuits, chillers, evaporators, compressors and heat exchangers, in brass or stainless steel bodies.
