PREMASGARD® SHD 692-U-907 LCD

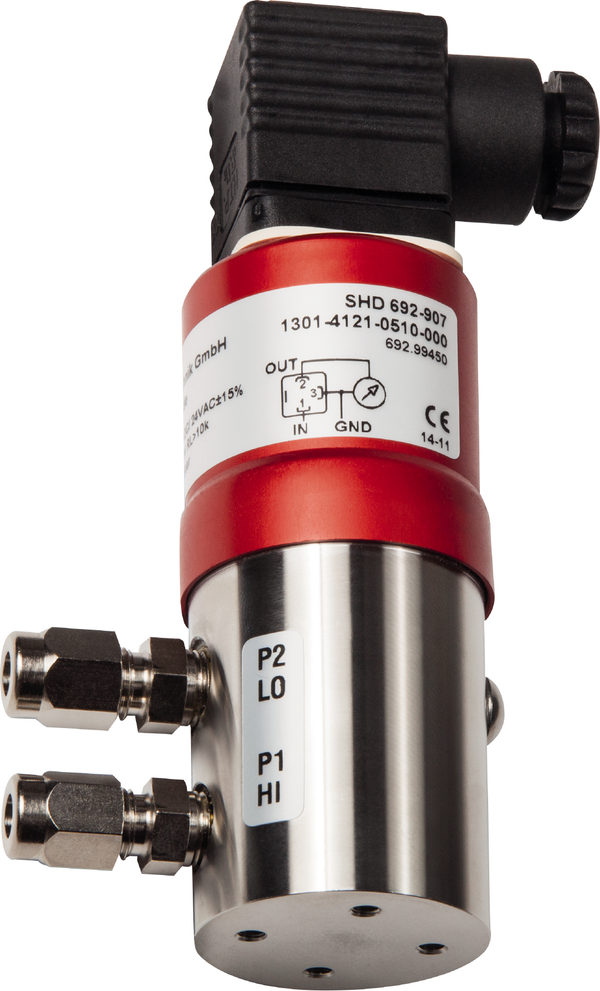

The pressure sensor ⁄ differential pressure sensor PREMASGARD® SHD-692 is used to measure pressures in gaseous and liquid media. It converts the measured variable into a standard signal of 0-10 V or 4...20 mA, with process connection 2 x G ⅛ " - 27 NPT female thread.
The SHD-692 differential pressure transmitter is used in pipelines and hydraulic systems, in mechanical and plant engineering and in building automation.
Not suitable for ammonia and freons!

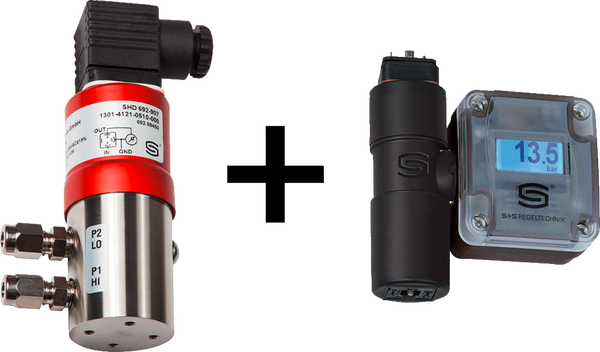

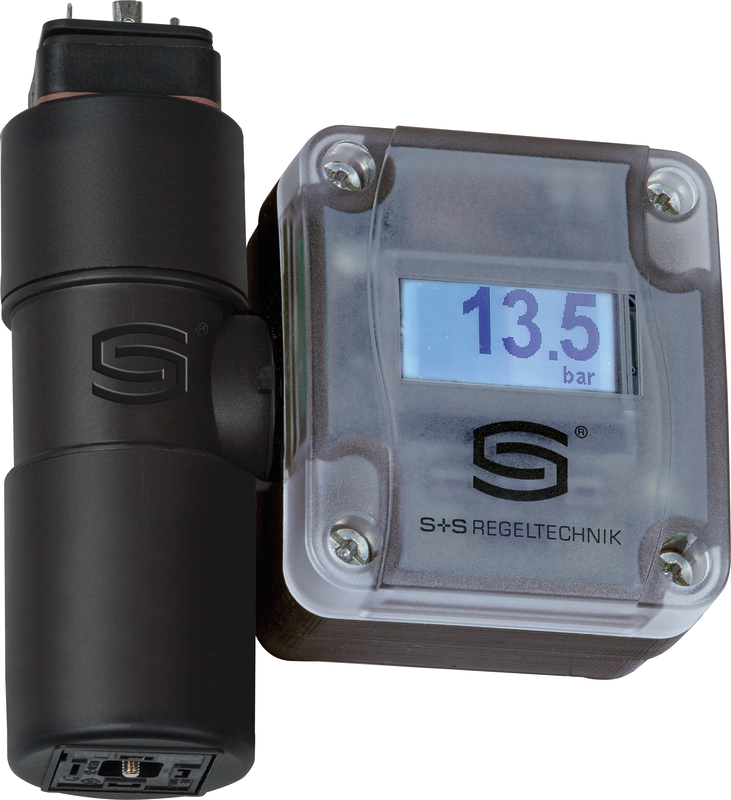

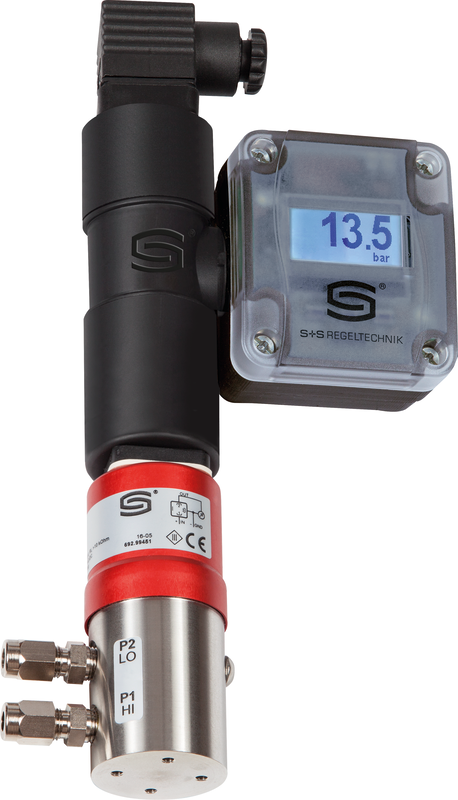

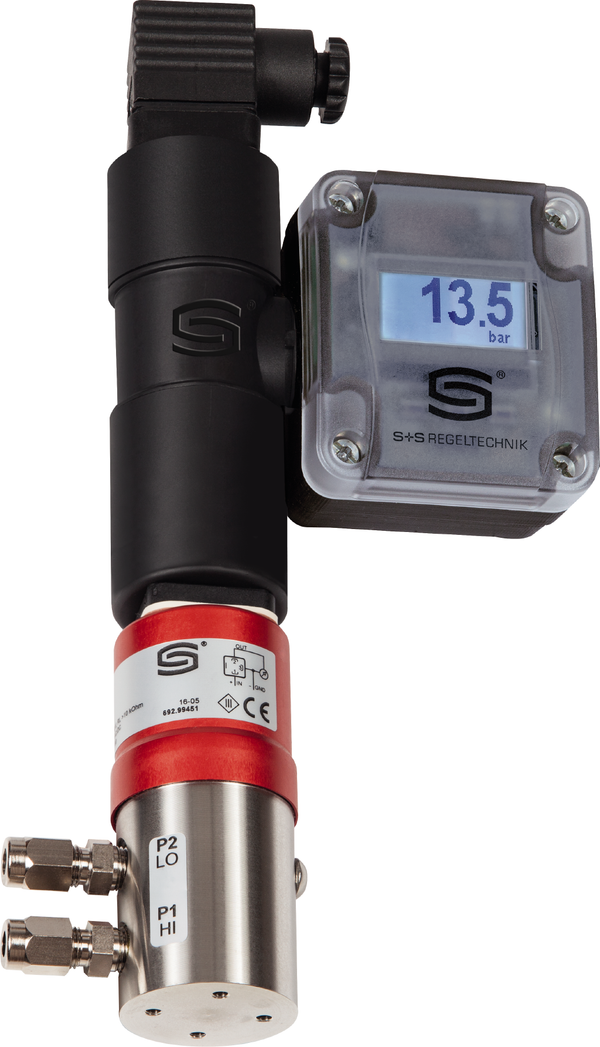

The SHD 692-xx-LCD device variant is supplied with an LCD-SHD display module. It is mounted below the angle plug. The module can be mechanically rotated and tilted, and the display content can be rotated in 90° steps to achieve the ideal reading position. The display types and pressure unit are configured directly on the display (menu-driven via buttons).
