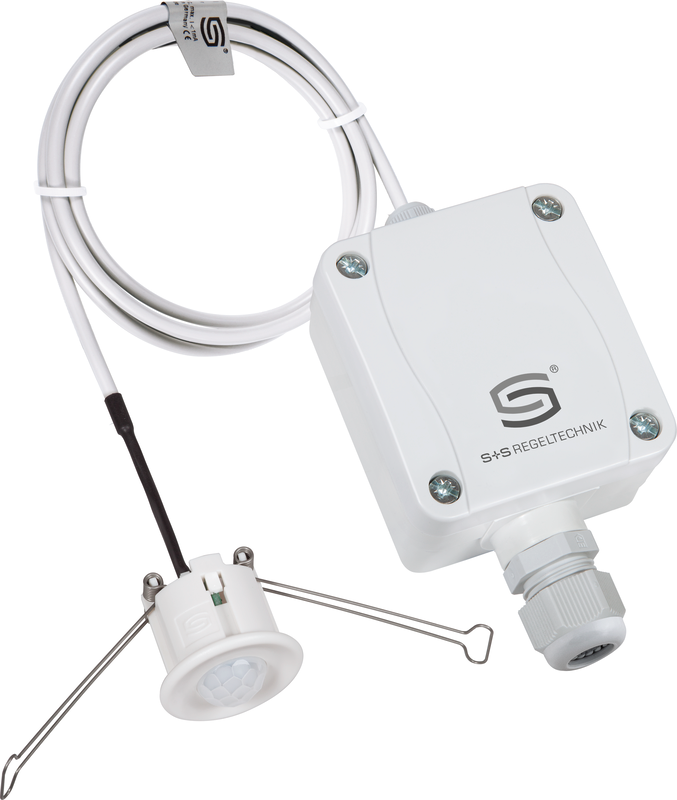

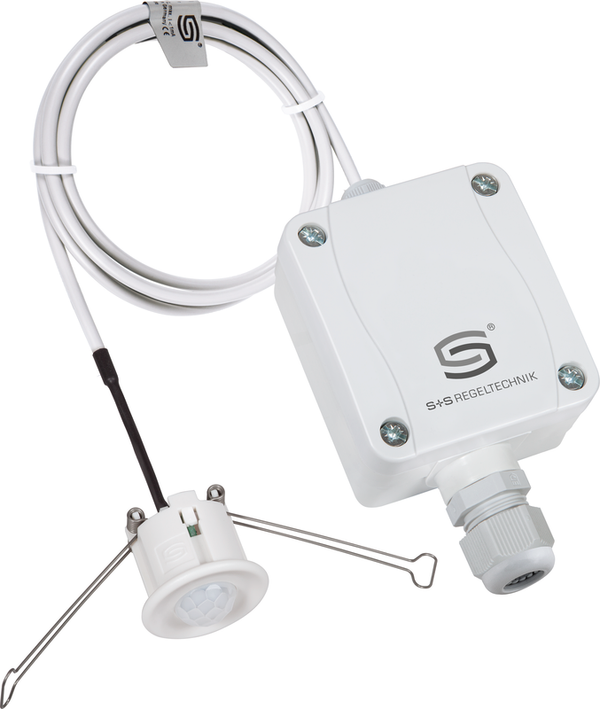

KINASGARD® DBWF-W

The ceiling movement sensor KINASGARD® DBWF detects the presence of people and movement and has a switching contact (changeover contact) as an output. The motion detector is used for monitoring, detecting statuses and motion-dependent control of room functions, e.g. for lowering the temperature in unused rooms.

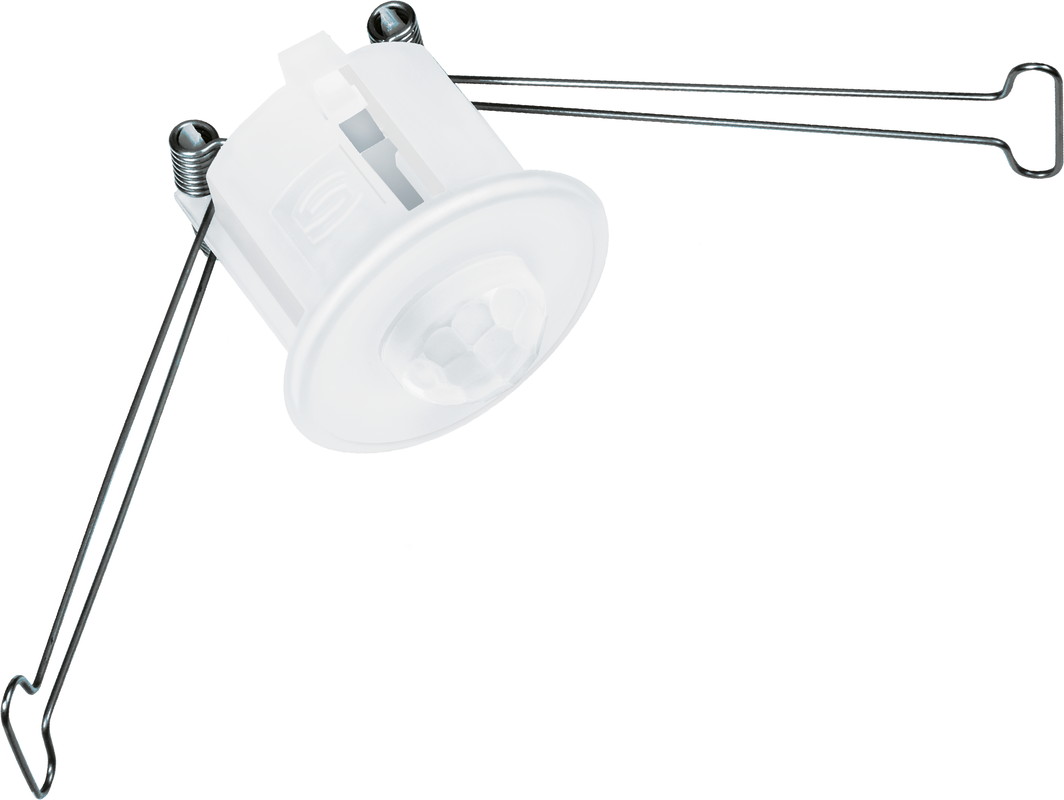

The ceiling motion detector is used for installation in false ceilings in corridors, offices and in residential and commercial premises. The transducer is located in a separate housing. The sensor detects movements with an aperture angle of 110° and 360° circumference. The patented lens system with 20 individual lenses creates very small dark areas that are only a few centimetres in size even at a distance of 10 m and reliably detect small movements.
