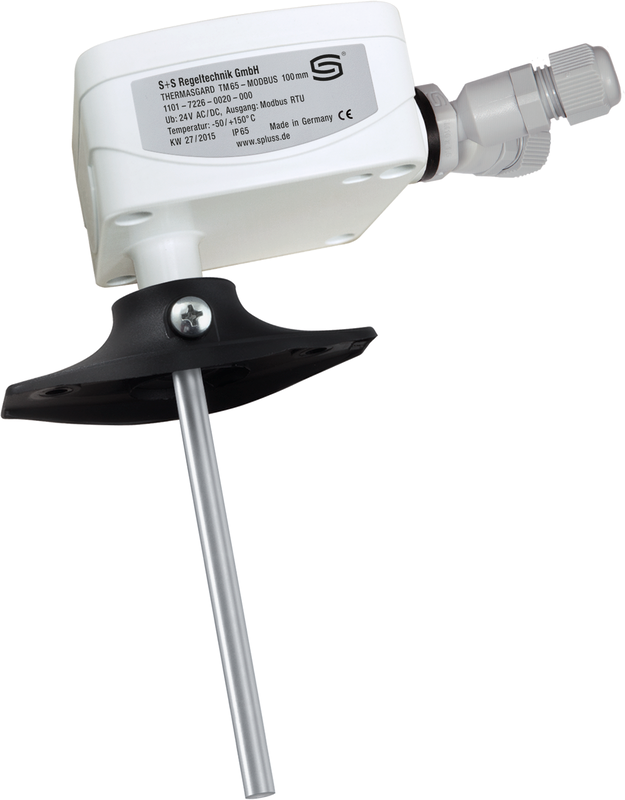

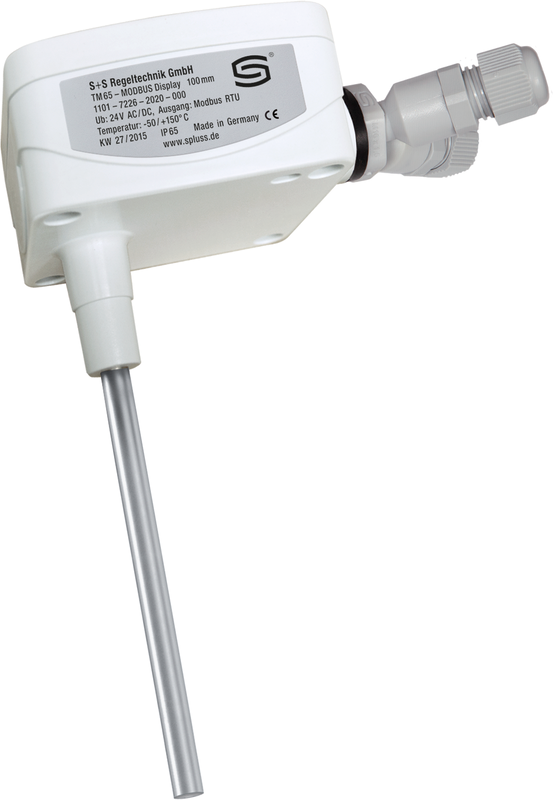

Immersion temperature transmitter THERMASGARD® TM65-Modbus 350mm

SKU 1101-7226-0070-000 EAN 4 251325 608686 Product group: WG01
Not available

This product is no longer manufactured.

Recommended successor product

with improved performance and additional features

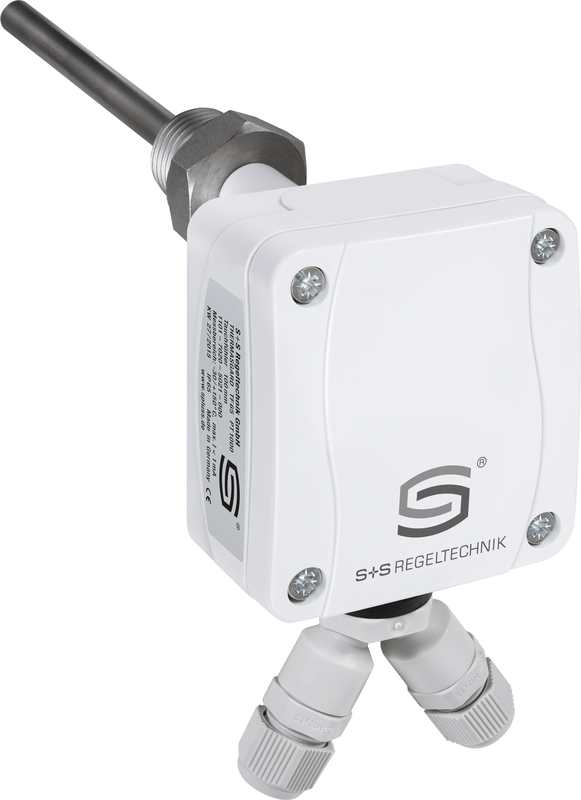

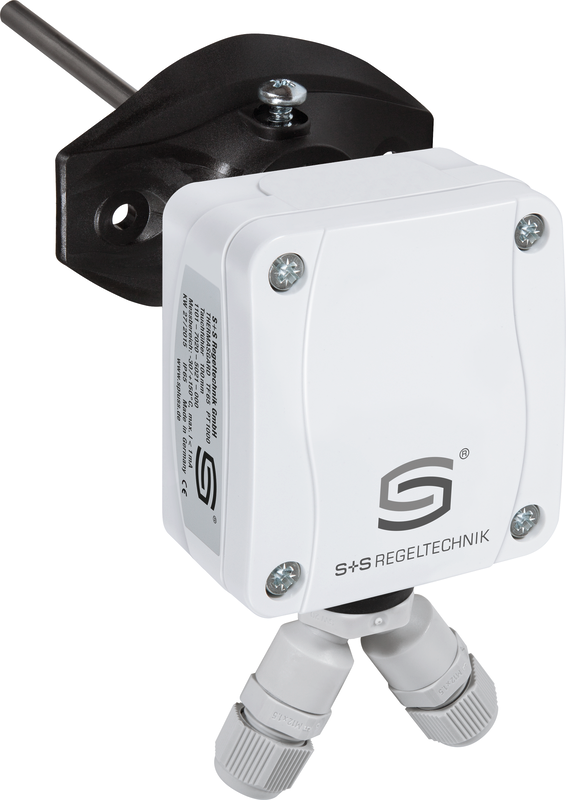

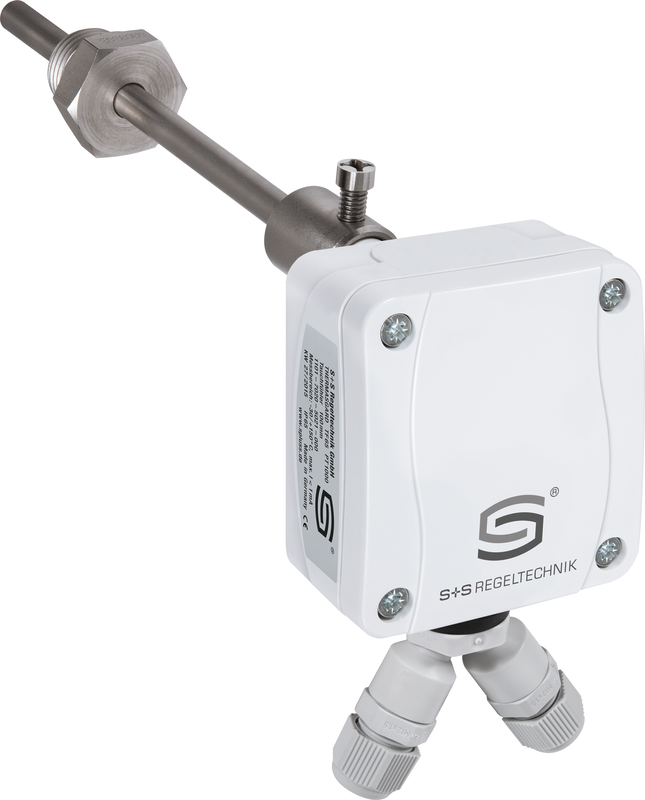

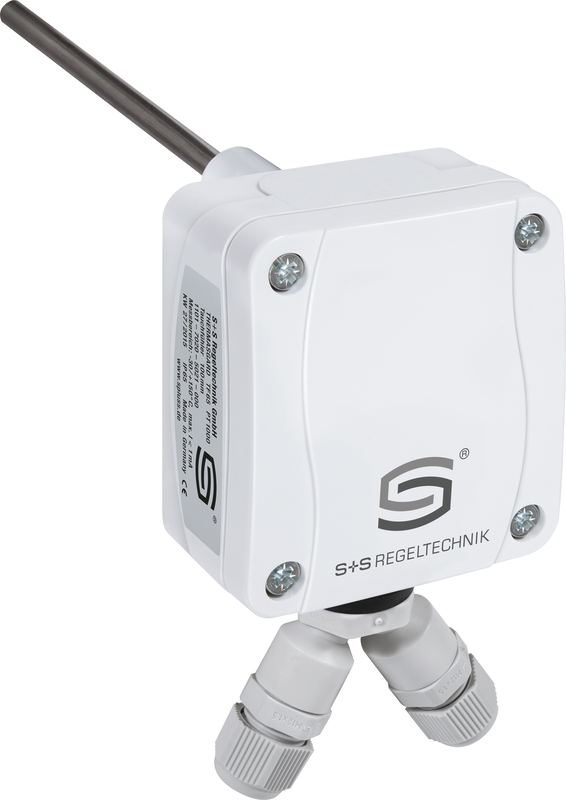

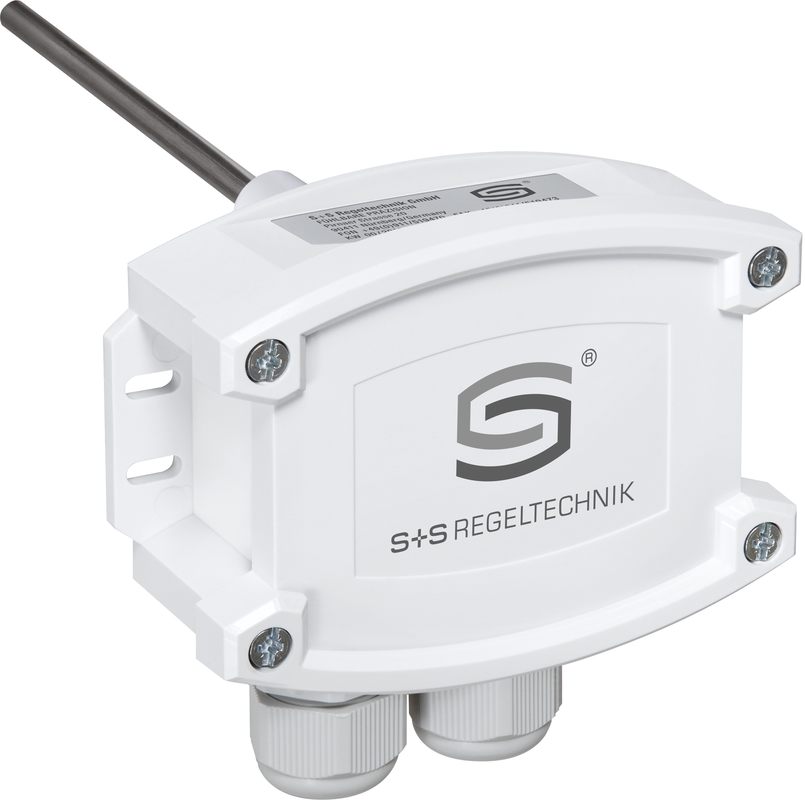

THERMASGARD® TM65-Modbus-T3 350mm

THERMASGARD® TM65-Modbus-T3 350mm

1101-7236-0070-000

  • –50...+150 °C
  • Mounting length: 350 mm
  • Channel probe
  • Modbus
  • IP65

$211.86
Shipping calculated at checkout.
$158.57
$158.57

Auf die Merkliste

Add to wishlist

Añadir a la lista de favoritos

Aggiungi alla lista dei preferiti

Добавить в список желаний

Ajouter à la liste de souhaits

Product description

  • −50...+150 °C
  • Mounting length: 350 mm
  • Modbus RTU
  • IP65

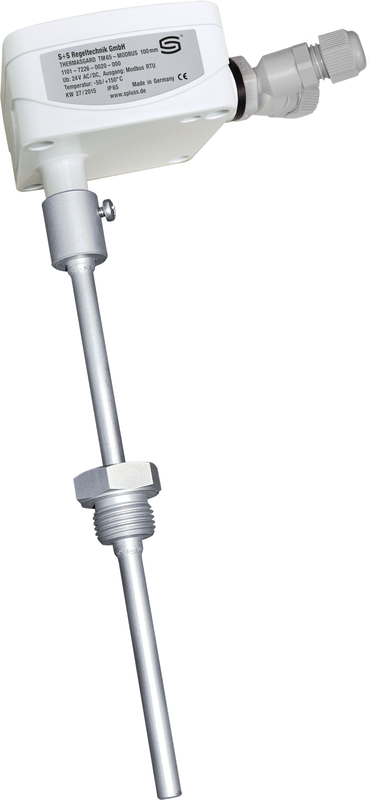

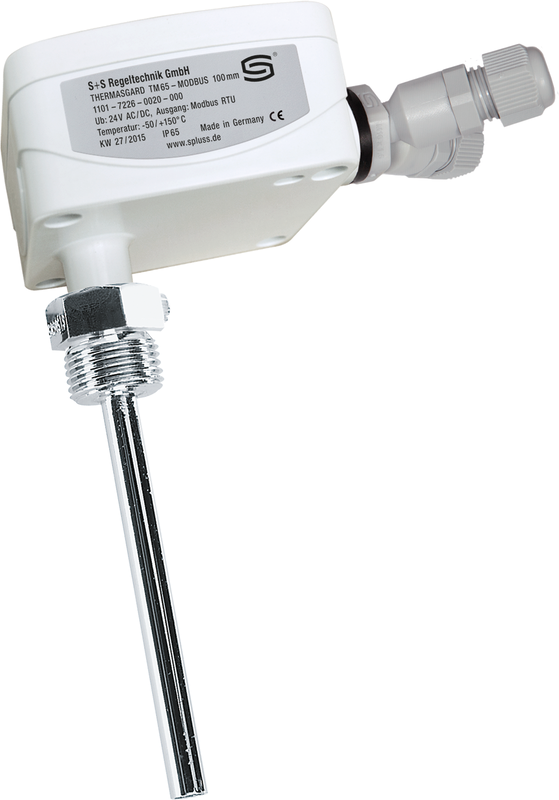

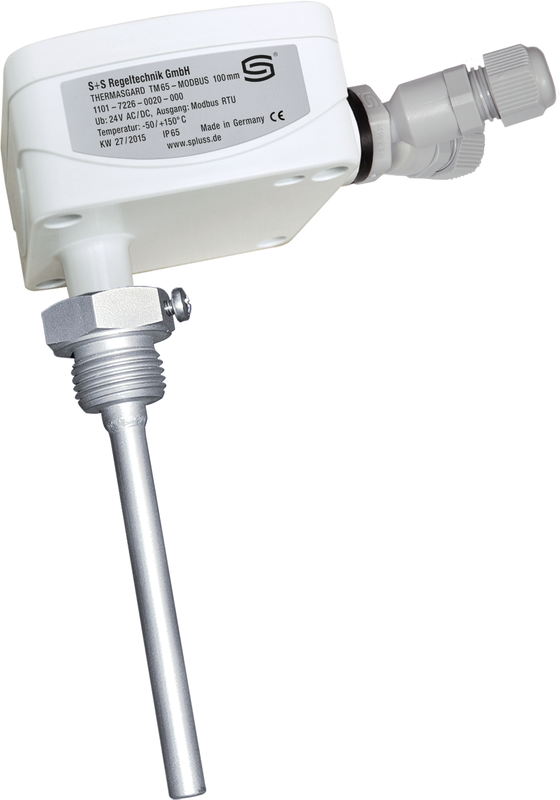

Calibratable temperature measuring transducer with straight thermowell THERMASGARD® TM 65 - Modbus with Modbus connection, terminal box housing made of impact-resistant plastic, housing cover with quick-release screws, optionally with/without display (for displaying the actual temperature).
For recording temperatures in liquid or gaseous media. The stainless steel immersion sleeves must be used for aggressive media. The TM 65 is used in pipelines, in heating technology, ventilation and air conditioning ducts, in storage tanks, district heating compact stations, hot and cold water systems, oil and lubrication circulation systems, in machine, apparatus and plant construction and in the entire industrial sector. The temperature transmitters are calibrated at the factory. Adjustment or fine adjustment by the user is possible (the zero offset is adjustable).

Technical data

Application / Mounting Immersion probe - plastic enclosure
Measured variables Temperature
Communication Modbus RTU
Power supply 24 V AC (± 20 %) and
15 … 36 V DC
Output Modbus RTU
Process connection metric / mm 350 mm
Display No
Degree of protection IP65
Output version Cable gland connection
Measuring range -50 … +150 °C
Equipment none
